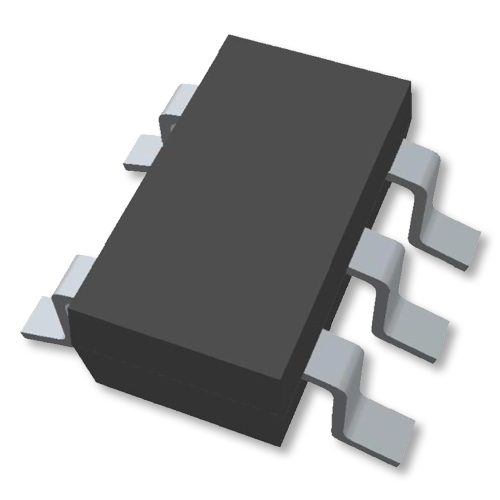

Ultra-Low Noise, High PSRR LDO, 250 mA Linear Regulator for RF and Analog Circuits
  • SKU
    WL2863E
  • Category
    Power Management - LDO
  • Application
    Mobile Devices, IoT / Emerging

The WL2863E is a linear regulator capable of supplying 250-mA output current. Designed to meet the requirements of RF and analog circuits, the WL2863E device provides low noise, high PSRR, low quiescent current and very good load /line transients.

The device is designed to work with a 1 μF input and 1 μF output ceramic capacitor (no separate noise Operation bypass capacitor is required).

The WL2863E regulators are available in standard SOT-23-5L Package. Standard products are Pb-free and Halogen-free.

Applications
– Cell phones, radiophone, digital cameras
– Bluetooth, wireless handsets
– HiFi products
– Other portable electronic devices

Input voltage range: 2.2V ~ 5.5V

Output voltage range: 1.2V ~ 4.3V

Output current: 250 mA

PSRR:
– Typ. 100 dB at 10 mA, f = 1 KHz
– Typ. 45 dB at 10 mA, f = 1 MHz

Low dropout: Typ. 115 mV at 250 mA

Quiescent current: Typ. 21 μA

Low output voltage noise: Typ. 7 μVRMS

Output voltage tolerance: ±2%

Shutdown current: Typ. 0.01 μA

UVLO threshold (V): Typ. 1.90V

Recommend capacitor: 1 µF

Stable with 1 μF ceramic input and output capacitor

No noise bypass capacitor required

Thermal-overload protection

  • Spec
    WL2863E
  • Package
    SOT‑23‑5L
  • RDISCHARGE FUNCTION
    Yes
  • Size
    2.92×1.6
  • Subfamily
    LDO, Linear regulator
  • VOUT (V) (Min.)
    Fix
  • Category
    LDO
  • Iq(uA)
    21
  • Output current 1(mA)
    250
  • PSRR(dB)
    100
  • Use Case
    IoT / Emerging, Mobile
  • Vdrop(mV)
    100 mV @ Iout = 250 mA
  • Vin Max(V)
    5.5
  • Vin Min(V)
    2.2
  • Vout(V)
    Fix
