Overview

WD1038DH is a high efficiency 1.5 MHz synchronous step-down DC/DC regulator capable of delivering up to 3A output current. It can operate over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDSON to minimize the conduction loss.

WD1038DH also provides over temperature protection (OTP), under-voltage lockout (UVLO), VOUT short protection.

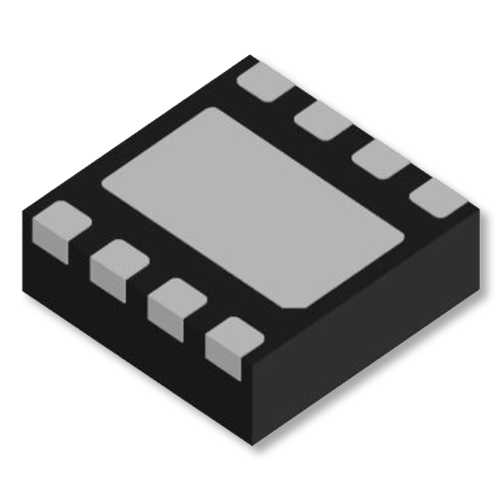

The WD1038DH is available in the DFN2x2-8L package. Standard product is Pb-Free and Halogen-Free.

Applications
- Smart Phones
- TV
- Set Top Box and OTT box
- Access Point Router

Features

Low Rdson internal Switches (top/bottom):
80/70 mΩ

2.7-5.5V input voltage range

3A continuous load current capability

1.5 MHz switching frequency minimizes the external components

35 µA low quiescent current

Internal soft-start limits the inrush current

Peak Current Mode Control

100% Duty-Cycle Mode

Power-Good Output

Order Information
Ordering No. Vout(V) Package
WD1038DH-8/TR N/A DFN2x2-8L
