SKUWS4666DAB
-
CategoryPower Management - Load Switch
-
ApplicationComputing, Mobile Devices
The WS4666D is a dual channel load switch that provides configurable rise time to minimize inrush current. The device contains two N-channel MOSFETs that can operate over an input voltage range of 0.6V to 5.5V and can support a maximum continuous current of 6A. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. In the WS4666D, a 54Ω on-chip load resistor is added for quick output discharge when the switch is turned off.

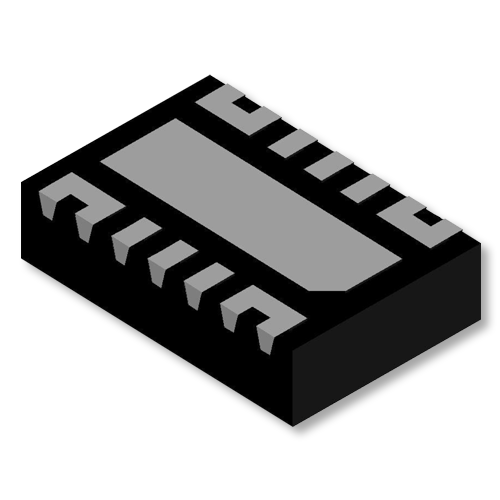

The WS4666D is available in a small, space-saving DFN3x2-14L package.Standard product is Pb-free and Halogen-free.
Applications:
– Ultrabooks™
– Notebooks / Netbooks
– Tablet PCs
– Consumer Electronics
– Set-Top Boxes / Residential Gateways
– Telecom Systems
Integrated Dual Channel Load Switch
Input Voltage Range: 0.6V to 5.5V
Ultra-Low On Resistance (RON) RON = 19 mΩ at VIN = 5V (VBIAS = 5V)
6A Maximum Continuous Switch Current
Low Control Input Threshold Enables Use of 1.2V, 1.8V, 2.5V, and 3.3V Logic
Configurable Rise Time
Quick Output Discharge (QOD)
DFN3x2-14L Package
ESD Performance Tested per JESD 22 2kV HBM and 1kV CDM
-
SpecWS4666DAB
-
IOUT (A) (Max.)6
-
PackageDFN3*2‑14L
-
RDISCHARGE (Ω) (Typ.)54
-
R (on)(Ω) (Typ.)0.019
-
Size3×2
-
SoftADJ
-
SubfamilyLoad Switch
-
CategoryLoad Switch
-
Iq(uA)49
-
Use CaseComputing, Mobile
-
Vin Max(V)5.5
-
Vin Min(V)0.6
