SKUWL2803E

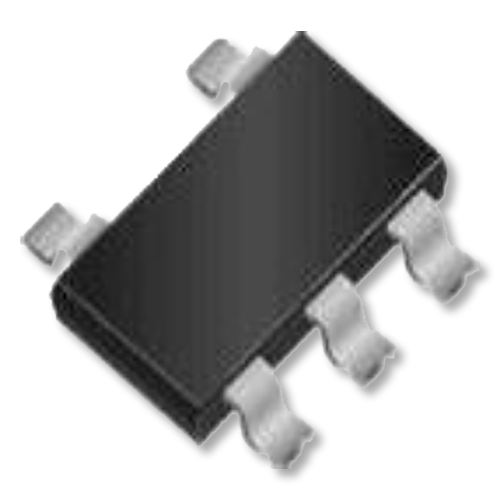

The WL2803E series are ultra low dropout, low quiescent current, high PSRR CMOS LDO. The dropout voltage is 130 mV (Typ.) at 500 mA load current.
Using CMOS construction, the quiescent current consumed by the WL2803E is typically 150 uA over the entire input voltage range, making it attractive for consumer, networking applications that demand high output current. The WL2803E series are available in wide output voltage range version from 1.2V to 3.3V with 0.1V step.
The WL2803E series offer thermal shutdown (OTP) and current limit functions, to assure the stability of chip and power system at wrong condition, and it uses trimming technique to guarantee output voltage accuracy within ±2%.
The WL2803E regulators are available in SOT-23-5L packages. Standard products are Pb-free and Halogen-free.
Applications
– LCD TV
– STB
– Computer, graphic card
– Network communication equipment
– Other portable electronic devices
Input voltage:
2.5V~5.5V
Output voltage:
1.2V~3.3V
Output current:
500 mA
PSRR:
65 dB @ 1 KHz
Dropout voltage:
130 mV @ IOUT = 0.5A
Output noise:
100 uV
Quiescent current:
150 μA Typ.
-
SpecWL2803E
-
PackageSOT‑23‑5L
-
RDISCHARGE FUNCTIONNo
-
Size2.92×1.6
-
SubfamilyLDO
-
CategoryLDO
-
Iq(uA)150
-
Output current 1(mA)500
-
PSRR(dB)65
-
Use CaseComputing, Emerging, Mobile, Security, Surveillance
-
Vdrop(mV)130 mV @ Iout = 500 mA
-
Vin Max(V)5.5
-
Vin Min(V)2.5
-
Vout(V)Fix
