Step-Up Converter
  • SKU
    WD3136E
  • Category
    Power Management - DC2DC GROUP

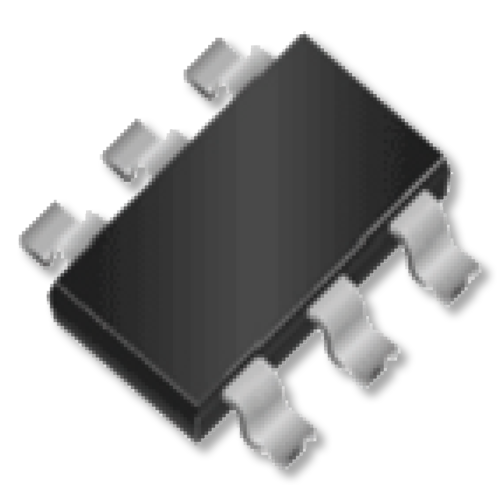

The WD3136E is a high efficiency, high power, peak current mode step-up converter integrated 32V power MOSFET with 3A (Typ.) current limit. It could support up to maximum 24V output.

The boost converter WD3136E runs in Pulse-Width Modulation (PWM) mode at 1 MHz fixed switching frequency to reduce output ripple and improve conversion efficiency. It allows for the use of small external components. At light load, the converter enters Skipping Mode to maintain a high efficiency over a wide load current range. The build-in soft start circuitry minimizes the inrush current at start-up.

The WD3136E is available in SOT-23-6L package. Standard product is Pb-free and Halogen-free.

Applications
– Cell Phone and Smart Phone
– PDA, PMP, MP3
– Digital Camera

Input Voltage Range:
2.4V~20V

Reference Voltage:
600 mV

Switching Frequency:
1 MHz (Typ.)

Efficiency:
Up to 94%

Internal Compensation

Current Limit:
3A (D=50%)

Low RDS (ON):
100 mΩ

Automatic Pulse Skipping Modulation

Package:
SOT-23-6L

  • Spec
    WD3136E
  • Description
    Non-Sync Boost
  • Vin Min(V)
    2, 4
  • Vin Max(V)
    20
  • Input OVP(V)
    NA
  • LED Driver
    DC-DC
  • Status
    MP
  • Control Mode
    CM
  • Output Current / Current Limit(A)
    3
  • Freqency (KHz)
    1000
  • Output OVP(V)
    NA
  • Topology
    Boost
  • PFM Mode at Light Load
    YES
