Synchronous Boost Converter
  • SKU
    WD31089
  • Category
    Power Management - DC2DC GROUP

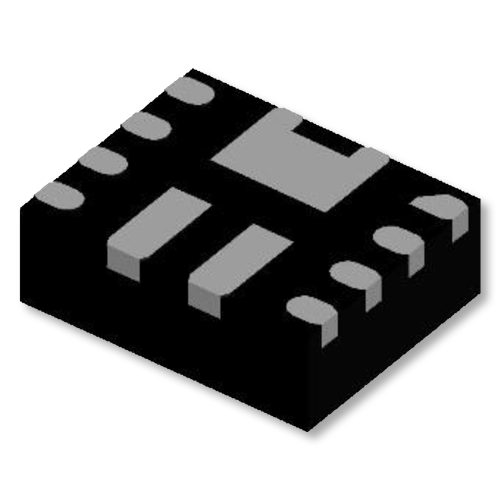

The WD31089 is a fully-integrated synchronous boost converter. The device provides a high efficiency and small size power solution for portable equipment. The WD31089 features wide input voltage range from 2.7V to 12V to support applications powered with single cell or two cell Lithium ion/polymer batteries. The WD31089 has 7A continuous switch current capability and provides output voltage up to 12.6V.

The WD31089 uses adaptive constant off-time peak current mode control to regulate the output voltage. The switching frequency in the PWM mode is adjustable from 200 kHz to 2.2 MHz. The WD31089 also implements a built-in 4 ms soft start function and an adjustable peak switch current limit function. In addition, the device provides 13.2V output overvoltage protection, cycle-by-cycle overcurrent protection, and thermal shutdown protection.

The WD31089 is available in a 2.0 mm × 2.5 mm QFN2520-12L package. Standard products is Pb-Free and Halogen-Free.

Applications
– Bluetooth™ Speaker
– Quick Charge Power Bank
– Portable POS Terminal
– E-Cigarette

Input Voltage Range of 2.7V to 12V

Output Voltage Range:
4.5V to 12.6V

Integrate 19 mΩ (Power Switch) / 27 mΩ (Rectifier Side)

Up to 90% EFF at VIN = 3.3V, VOUT = 9V, IOUT = 2A

Adjustable Switching Frequency:
200 kHz to 2.2 MHz

Resistor-Programmable Peak Current Limit up to 10A for high pulse current and Hiccup

Power Save Mode at Light Load

Fast Load Transient Response with COT Control Mode

Internal Output Overvoltage Protection at 13.2V

Thermal Shutdown

  • Spec
    WD31089
  • Description
    12V boost
  • Vin Min(V)
    2, 7
  • Vin Max(V)
    12
  • Input OVP(V)
    NA
  • LED Driver
    DC-DC
  • Status
    Development
  • Control Mode
    Constant Off Time
  • Output Current / Current Limit(A)
    7
  • Freqency (KHz)
    200-2200
  • Output OVP(V)
    13.2
  • Topology
    Boost
  • PFM Mode at Light Load
    YES
