The WD1042 is a high efficiency, synchronous step down DC-DC converter optimized for battery powered portable applications. It supports up to 1.0A output current. With a wide input voltage range of 2.5V to 5.5V, the device supports applications powered by single Li-ion battery with extended voltage range, two and three alkaline cell, 3.3V and 5V input voltage range. The WD1042 operates at 1.5 MHz fixed switching frequency with Pulse-Width-Modulation (PWM) and enters Pulse-Skipping-Modulation (PSM) operation at light load current to maintain high efficiency over the entire load current range.
The switching frequency is internally set at 1.5 MHz, allowing the use of tiny surface mount inductor and input/output capacitors. Low output voltage is easily supported with the 0.6V feedback reference voltage.

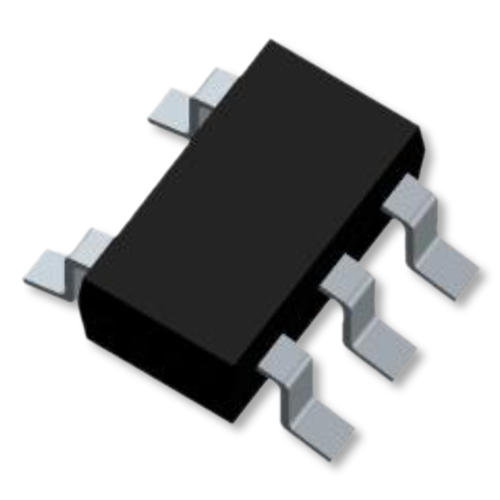

The WD1042 is available in SOT-23-5L package. Standard product is Pb-free and Halogen-free.
Input voltage range:
1.5 MHz (Typ.)
Up to 92%
Feedback reference voltage:
100% duty cycle for low dropout operation
Adjustable Output Voltage
Output Current / Current Limit(A)1
PFM Mode at Light LoadYES
