Overview

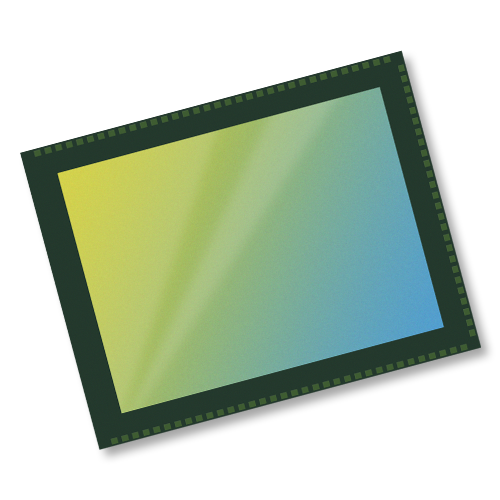

OmniVision's OV13870 is the industry's first 13-megapixel "big pixel" sensor capable of recording full-resolution 1080p high definition (HD) video at 240 frames per second (fps). The OV13870 also features a 12-bit analog to digital converter (ADC) to enable better low light signal to noise ratio (SNR), phase detection auto focus (PDAF), and dedicated support for dual-camera functionality.

Built on OmniVision's new PureCel Plus-S pixel architecture, the OV13870 delivers best-in-class pixel performance with significant improvements in low-light performance and crosstalk reduction with minimal chip size. Even with a 1/2.74-inch optical format, the OV13870 has an extremely compact module with a z-height of about 5.5 mm.

The OV13870 can capture full-resolution 13-megapixel still images at 45 fps or record ultra-high resolution 4K2K video at 60 fps, 1080p full HD at 240 fps.

Features

1.25 µm x 1.25 µm pixel

Optical size of 1/2.74"

33.99° CRA

Enhanced dual cam support

High-speed architecture for fast frames per second (fps)

Programmable controls for:
- Frame rate
- Mirror and flip
- Cropping
- Windowing

Supports images sizes:
- 13MP (4224x3136)
- 4K2K (3840x2160)
- 1080p (1920x1080), and more

Two-wire serial bus control (SCCB)

Strobe output to control flash

Embedded 13.5 kbits of one-time programmable (OTP) memory

Support for phase detection auto focus (PDAF)

Two on-chip phase lock loops (PLLs)

Programmable controls for:
- Gain
- Exposure
- Frame rate
- Image size
- Horizontal mirror
- Vertical flip
- Cropping
- Panning

Image quality controls for:
- Defect pixel correction
- Automatic black level calibration
- Lens shading correction
- Alternate row HDR

Built-in temperature sensor

Typical module size: 9.5 x 9.5 x

Part Specification
SpecOV13870-GA5A-Z
PackageCOB
RW
TechnologyPureCel®Plus-S
InterfaceMIPI / LVDS
Shutter TypeRolling Shutter
Resolution13.2MP
CFA (Chroma)RGB Bayer
Analog / DigitalDigital
Power RequirementActive: 320 mW @ full-res, 30 fps, 12-bit
Standby: 265 mW @ full-res, 30 fps, 10-bit
XSHUTDOWN: <10 µW
Output FormatDPCM 12-8 compression
RAW
Operating Temperature-30°C to +85°C
Optical Format1/2.74"
Frame RateFull @ 30 fps
Pixel Size1.25 µm
Image Area5320 x 3960 µm
Package Dimensions6300 x 4900 µm
Product GuidePDF
