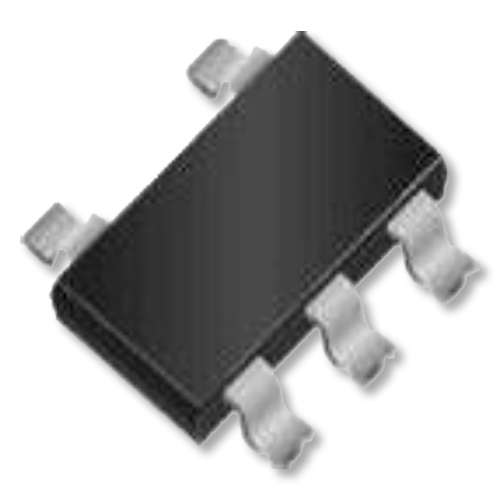

The WL2836E series is a high accuracy, low noise, high speed, high PSRR, low dropout CMOS Linear regulator with high ripple rejection. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices.

The WL2836E has the fold-back maximum output current which depends on the output voltage. So the current limit functions both as a short circuit protection and as an output current limiter.

The WL2836E regulators are available in standard SOT-23-5L Package. Standard products are Pb-free and Halogen-free

Applications
- MP3/MP4 Players
- Cellphones, radiophone, digital cameras
- Bluetooth, wireless handsets
- Other portable electronic devices

Features

Input Voltage Range:
1.4V~5.5V

Output Voltage Range:
0.8V~3.3V

Output current:
300 mA

Quiescent current:
50 μA Typ.

Shut-down current:
<1 μA

Dropout voltage:
140 mV @ IOUT=0.3A

PSRR:
78 dB @ 1 kHz, VOUT=1.8V

Low Output Voltage Noise:
20 μVRMS Typ.

Output Voltage Tolerance:
±2% @ VOUT>2V

Recommend capacitor:
1 μF

Thermal-Overload and Short-Circuit Protection

Order Information
Ordering No. Vout(V) Package
WL2836E08-5/TR 0.8 SOT-23-5L
WL2836E09-5/TR 0.9 SOT-23-5L
WL2836E10-5/TR 1.0 SOT-23-5L
WL2836E11-5/TR 1.1 SOT-23-5L
WL2836E12-5/TR 1.2 SOT-23-5L
WL2836E13-5/TR 1.3 SOT-23-5L
WL2836E15-5/TR 1.5 SOT-23-5L
WL2836E18-5/TR 1.8 SOT-23-5L
WL2836E25-5/TR 2.5 SOT-23-5L
WL2836E27-5/TR 2.7 SOT-23-5L
WL2836E28-5/TR 2.8 SOT-23-5L
WL2836E29-5/TR 2.9 SOT-23-5L
WL2836E30-5/TR 3.0 SOT-23-5L
WL2836E33-5/TR 3.3 SOT-23-5L
