Linear Regulator
  • SKU
    WL2863B
  • Category
    Power Management - LDO GROUP

The WL2863B is a linear regulator capable of supplying 250-mA output current. Designed to meet the requirements of RF and analog circuits, the WL2863B device provides low noise, high PSRR, low quiescent current and very good load /line transients.

The device is designed to work with a 1 μF input and 1 μF output ceramic capacitor (no separate noise Operation bypass capacitor is required).

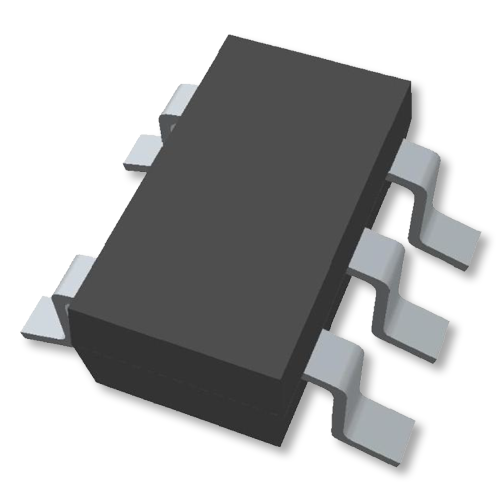

The WL2863B regulators are available in standard SOT-23-5L Package. Standard products are Pb-free and Halogen-free.

Applications
– Cell phones, radiophone, digital cameras
– Bluetooth, wireless handsets
– HiFi products
– Other portable electronic devices

Input voltage range: 2.2V ~ 5.5V

Output voltage range: 1.2V ~ 4.3V

Output current: 250 mA

PSRR:
– Typ. 101 dB at 10 mA, f = 1 KHz
– Typ. 45 dB at 10 mA, f = 1 MHz

Low dropout: Typ. 115 mV at 250 mA

Quiescent current: Typ. 21 μA

Low output voltage noise: Typ. 7 μVRMS

Output voltage tolerance: ±2%

Shutdown current: Typ. 0.01 μA

UVLO threshold (V): Typ. 1.90V

Recommend capacitor: 1 µF

Stable with 1 μF ceramic input and output capacitor

No noise bypass capacitor required

Thermal-overload protection

  • Spec
    WL2863B
  • Output Voltage Max(V)
    3, 4
  • Output Voltage Min(V)
    1, 2
  • Description
    250mA Linear Regulator for RF and Analog Circuits, High PSRR LDO, Ultra-Low Noise
  • Iq(uA)
    21
  • Noise(μVRMS)
    4, 8
  • Output current 1(mA)
    250
  • PSRR(dB)
    100
  • Vdrop(mV)
    100 mV @ Iout = 250 mA
  • Vin Max(V)
    5
  • Vin Min(V)
    2
  • Vout(V)
    Fix
