SKUWL2841D
The WL2841D is a high accuracy, low noise, high speed, low dropout CMOS Linear regulator with high ripple rejection.It is equipped with NMOS pass transistor and a separate bias supply voltage (VBIAS). The devices offer a new level of cost effective performance in cellular phones, laptop and other portable devices.
The WL2841D are available in fixed output voltages between 0.8V and 2.1V, and capable of driving up to 500 mA. Other features include over temperature protection and over current protection.

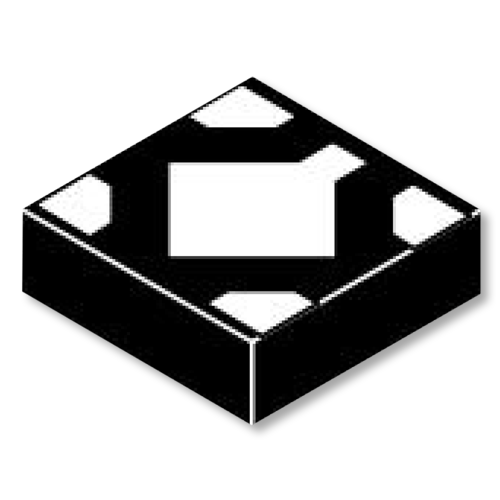

The WL2841D regulators are available in DFN1212-4L Package. Standard products are Pb-free and Halogen-free.
Applications
– MP3/MP4 Players
– Cellphones, radiophone, digital cameras
– Bluetooth, wireless handsets
– Other portable electronic devices
Input voltage: 0.8V ~ 5.5V
Bias voltage: 2.4V ~ 5.5V
Output range: 0.8V ~ 2.1V
Output current: 500 mA Typ.
PSRR: 85 dB @ 1 kHz
Low Noise: 20 uVrms(10 Hz to 100 kHz)
Dropout voltage: 150 mV @ IOUT = 500 mA
Quiescent current: 65 μA Typ.
Shut-down current: less than 1.0 μA
Stable with a Ceramic capacitor: 2.2 µF
-
SpecWL2841D
-
Use CaseEmerging, Mobile
