SKUWL2837D
-
CategoryPower Management - LDO GROUP
The WL2837D series are high accuracy, low noise, high speed, high PSRR, low dropout CMOS Linear regulators with high ripple rejection. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices.
The WL2837D has the fold-back maximum output current which depends on the output voltage. So the current limit functions both as a short circuit protection and as an output current limiter.

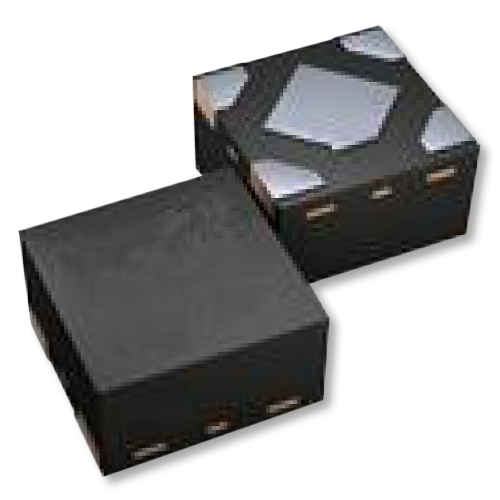

The WL2837D regulators are available in standard DFN1x1-4L Package. Standard products are Pb-free and Halogen-free.
Applications
– MP3/MP4 Players
– Cellphones, radiophone, digital cameras
– Bluetooth, wireless handsets
– Other portable electronic devices
Input Voltage Range:
1.4V~5.5V
Output Voltage Range:
0.9V~3.3V
Output current:
500 mA
Quiescent current:
50 μA Typ.
Shut-down current:
<1 μA
Dropout voltage:
526 mV @VOUT=1.1V, IOUT=0.5A
PSRR:
78 dB @ 1 kHz, VOUT=1.05V
Low Output Voltage Noise:
20 μVRMS Typ
Output Voltage Tolerance:
±1% @ VOUT>2V
Recommend capacitor:
1 μF
Thermal-Overload and Short-Circuit Protection
-
SpecWL2837D
-
Output Voltage Max(V)3
-
Output Voltage Min(V)0, 9
-
DescriptionCMOS LDO, High PSRR, High speed, Low noise
-
Iq(uA)50
-
Noise(μVRMS)13x VOUT
-
Output current 1(mA)500
-
PSRR(dB)78
-
Vdrop(mV)140 mV @ Iout = 300 mA
-
Vin Max(V)5
-
Vin Min(V)1, 4
-
Vout(V)Fix
