LED Driver
  • SKU
    WD3149D
  • Category
    Power Management - LCD & OLED GROUP

The WD3149 is a constant current, high efficiency LED driver. Internal MOSFET can drive up to 10 white LEDs in series with 1.5A current limit and 38V OVP. The device operates at 1.1 MHz fixed switching frequency to reduce output ripple, improve conversion efficiency, and allows for the use of small external components.

The default Full-Scale White LED current is set by an external sensor resistor with regulated 200 mV feedback voltage, as shown in typical application. During operation, the LED current can be controlled using the Pulse Width Modulation (PWM) signal applied on the EN pin, through which the PWM Duty-Cycle determines the White LED current. For maximum protection, the device features integrated open LED protection to prevent IC damage as the result of white LED disconnection.

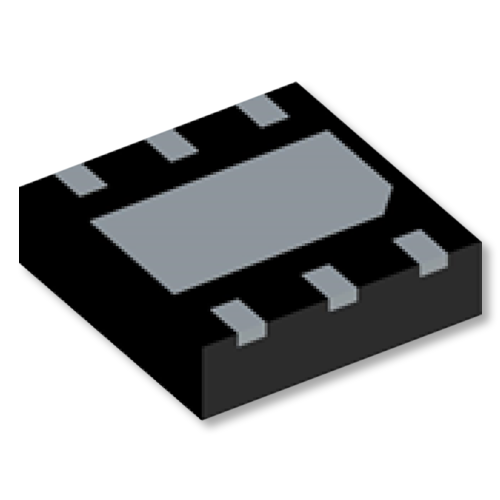

The WD3149 is available in DFN2mmx2mm-6L package. Standard product is Pb-free and Halogen-free.

Applications
– Smart Phones
– Tablets
– Portable games

Input voltage range:
2.7~5.5V

Open LED Protection:
38V (Typ.)

Reference Voltage:
200 mV (±5%)

Switching frequency:
1.1 MHz (Typ.)

Efficiency:
Up to 91%

Main switch current limit:
1.5A (Typ.)

PWM Dimming frequency:
20 KHz to 100 KHz

PWM Dimming Duty:
0.3%~100%

  • Spec
    WD3149D
  • Description
    Non-Sync Boost 38V Step-Up White LED Driver
  • Vin Min(V)
    2, 7
  • Vin Max(V)
    5
  • Input OVP(V)
    NA
  • LED Driver
    DC-DC
  • Status
    MP
  • Control Mode
    CM
  • Output Current / Current Limit(A)
    1, 5
  • Freqency (KHz)
    1100
  • Output OVP(V)
    38
  • Topology
    Boost
  • PFM Mode at Light Load
    NA
