Step-Down DC/DC Regulator
  • SKU
    WD1035DH
  • Category
    Power Management - DC2DC GROUP

WD1035DH is a high efficiency 1.5 MHz synchronous step-down DC/DC regulator capable of delivering up to 3A output current. It can operate over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDSON to minimize the conduction loss.

WD1035DH also provides over temperature protection (OTP), under-voltage lockout (UVLO), VOUT short protection.

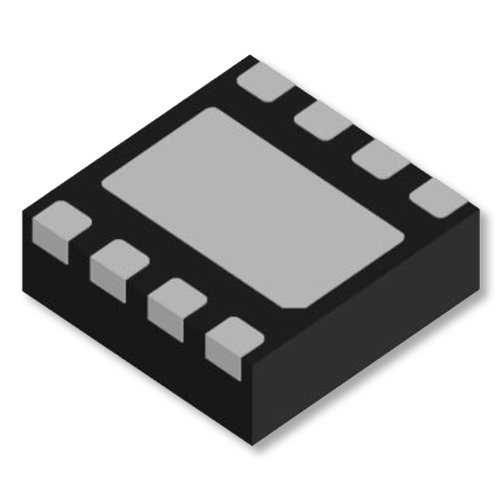

The WD1035DH is available in the DFN2x2-8L package. Standard product is Pb-Free and Halogen-Free.

Applications
– Smart Phones
– TV
– Set Top Box and OTT box
– Access Point Router

Low Rdson internal Switches (top/bottom):
100/60 mΩ

2.7-5.5V input voltage range

3A continuous load current capability

1.5 MHz switching frequency minimizes the external components

45 µA low quiescent current

Internal soft-start limits the inrush current

Constant On Time (COT) Control for fast transient response

100% Duty-Cycle Mode

Power-Good Output

  • Spec
    WD1035DH
  • Description
    5V/3A Buck Regulator with COT Mode
  • Vin Min(V)
    2, 7
  • Vin Max(V)
    5
  • Input OVP(V)
    3, 6
  • LED Driver
    DC-DC
  • Status
    MP
  • Control Mode
    COT
  • Output Current / Current Limit(A)
    3
  • Freqency (KHz)
    1500
  • Output OVP(V)
    NA
  • Topology
    Buck
  • PFM Mode at Light Load
    YES
