1/1.729" RGGB 8‑Megapixel (3840 x 2160) High Dynamic Range (HDR) CMOS Image Sensor with TheiaCel™ Technology

8MP Automotive Image Sensor with TheiaCel™ for Exterior Automotive Cameras

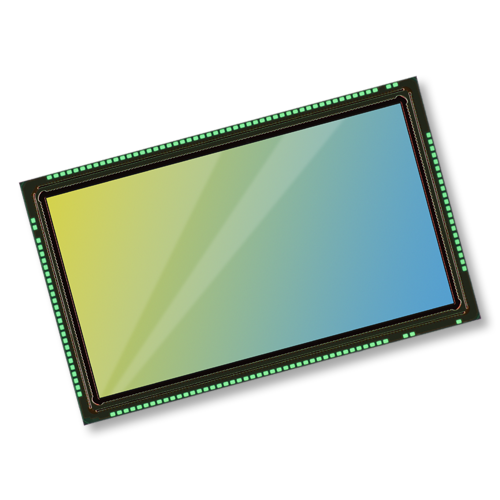

The OX08D20 8‑megapixel (MP) CMOS image sensor with TheiaCel™ technology is for automotive OEMs seeking a single device that integrates all of the most important image sensor features, including best-in-class low-light performance, LED flicker mitigation, compact size, superior image quality at high temperatures, and low power. It is an upgrade to the popular OX08D10 sensor for exterior cameras used in advanced driver assistance systems (ADAS) and autonomous driving (AD).

The OX08D20 features all of the benefits of the OX08D10, as well as:

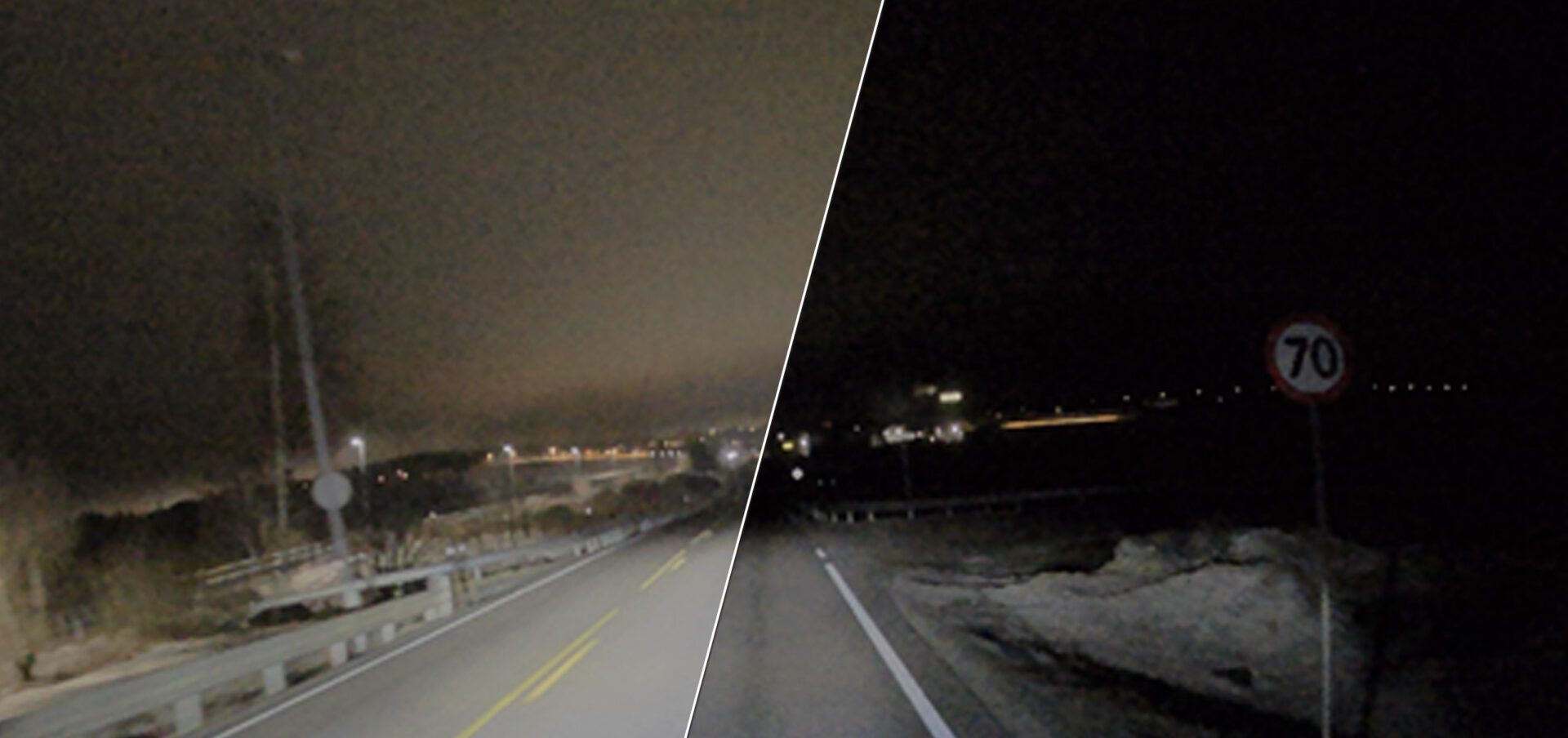

  • An innovative capture scheme developed in collaboration with Mobileye that significantly reduces the motion blur of nearby objects (while driving) and improves low-light performance
  • An upgrade to 60 frames per second (fps) to enable dual-use cameras
  • Updated cybersecurity to match the latest industry standard, MIPI CSE 2.0

October 7, 2025: OMNIVISION Introduces Next-Generation 8MP Image Sensor for Exterior Automotive Cameras

  • Spec
  • Analog / Digital
    Digital
  • Category
    8MP to 13MP
  • CFA (Chroma)
    RGGB
  • Frame Rate
    HDR3: 60 fps @ 3840 x 2160, HDR4: 55 fps @ 3840 x 2160, HDR4: 60 fps @ 3840 x 1972, HDR6: 30 fps @ 3840 x 2160
  • Interface
    MIPI
  • Optical Format
    1/1.729"
  • Output Format
    20/16/14/12-bit (PWL) combined HDR, Uncompressed 24-bit (HDR4)/20-bit (HDR3)
  • Package
    a‑CSP™
  • Pixel Size
    2.1 µm
  • Resolution
    8MP
  • Shutter Type
    Rolling Shutter
  • Technology
    LFM, TheiaCel™
  • Use Case
    Sensing Applications - Autonomous Driving, Sensing Applications - Forward facing ADAS
