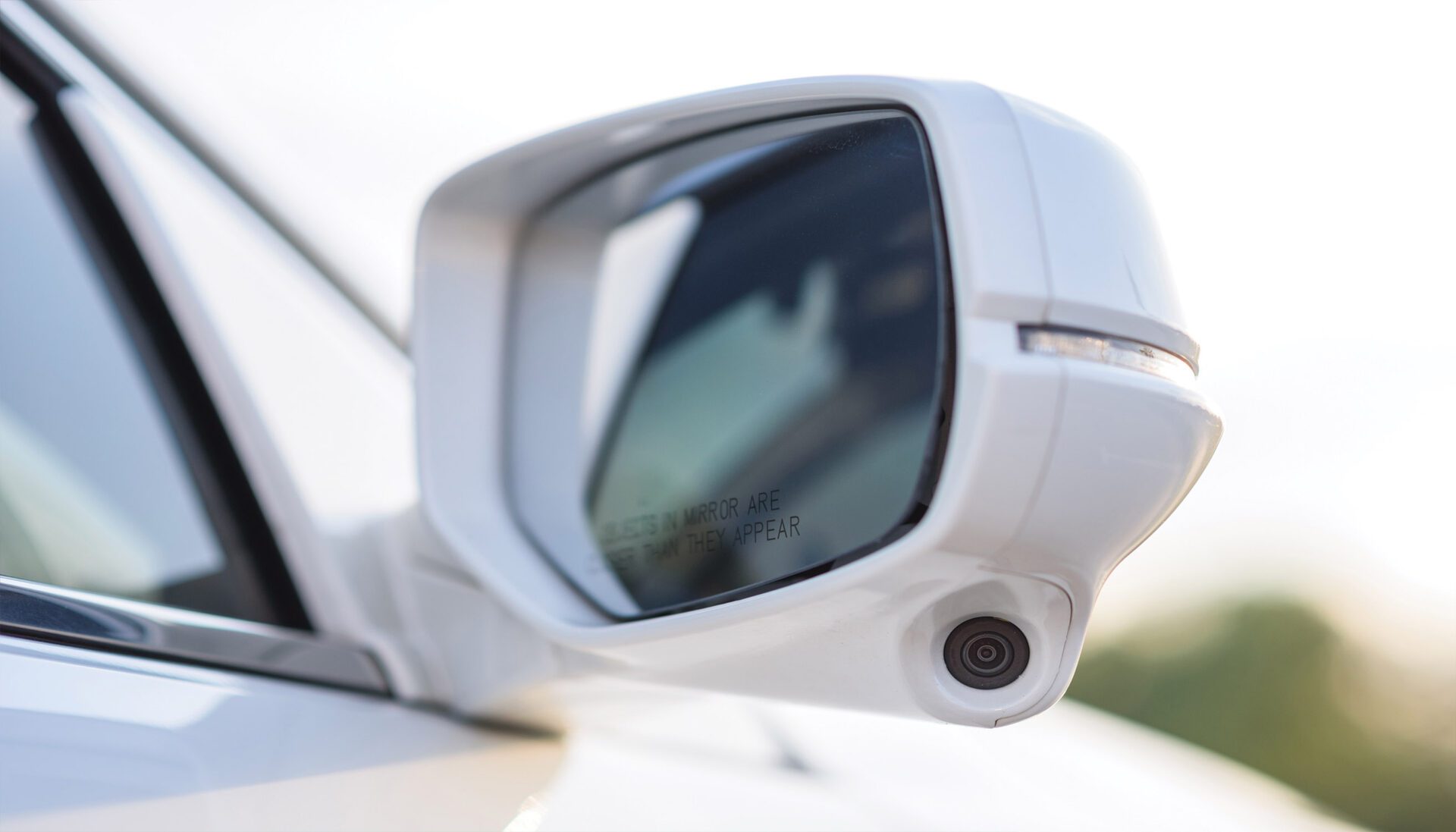

OX03H10 Image Sensor with TheiaCel™ Technology Brings Unparalleled Clarity to Automotive Viewing Cameras

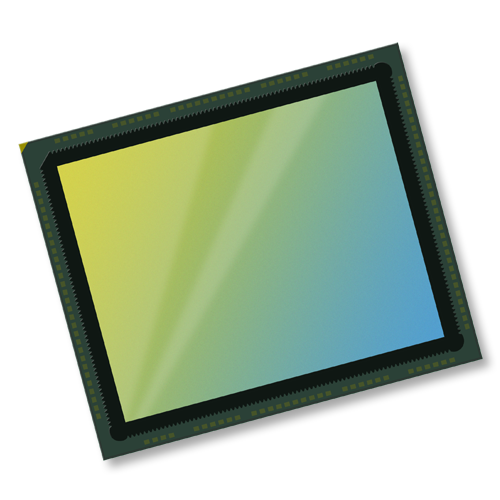

The 3‑megapixel (MP)-resolution OX03H10 CMOS image sensor has excellent low-light performance and unrivalled LED flicker mitigation (LFM) by utilizing a single exposure to generate the entire 140 dB dynamic range. This is achieved using TheiaCel™ technology, which harnesses the capabilities of lateral overflow integration capacitor (LOFIC) technology, together with OMNIVISION’s proprietary single-exposure DCG™ and split pixel high dynamic range (HDR) technology, to enable superior image quality regardless of lighting conditions.

At 1920 x 1536 resolution, the OX03H10 features 60 frames per second (fps) and has low power consumption. The 3.0 µm pixel is based on PureCel®Plus‑S stacking technology for the smallest pixel and highest resolution in a 1/2.44‑inch optical format. It comes in a small a‑CSP™ package size and is pin-to-pin compatible with OMNIVISION’s OX03F10 automotive image sensor for seamless upgrades. The OX03H10 meets ASIL C functional safety regulations, features cybersecurity and has a MIPI output interface.

The OX03H10 is available for sampling now and will be in mass production in the second half of 2025.

October 7, 2024: OMNIVISION’s New OX03H10 Image Sensor with TheiaCel™ Technology Brings Unparalleled Clarity to Automotive Viewing Cameras
