Color CMOS 720p (1280x720) HD CameraCubeChip® with OmniBSI™+ Technology
  • SKU
    OVM9724-RADA
  • Category
    CameraCubeChip - 720p GROUP
  • Application
    Mobile - Image Sensors

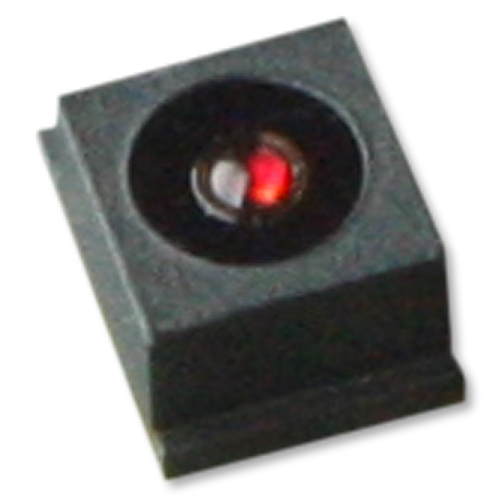

OMNIVISION’s ultra-compact OVM9724 CameraCubeChip®® captures 720p high definition (HD) video at 30 frames per second (fps) in an industry-leading miniaturized module of 3.9 x 2.9 x 2.3 mm. Because the OVM9724 CameraCubeChip®® is a reflowable all-in-one camera drop-in solution, the need for additional components is eliminated and manufacturing is significantly streamlined.

The low-power 1/9-inch OVM9724 utilizes OMNIVISION’s powerful OmniBSI™+ pixel architecture to enable high quality color images and fast frame 720p HD video at 30 fps or cropped VGA at 60 fps. This combination of high-performance and small form factor allows HD cameras to be integrated into ultra-slim, narrow-bezel devices, making it an attractive solution for next generation smartphones, tablets, notebooks and Ultrabooks™.

The OVM9724 provides full-frame, sub sampled or windowed 8- and 10-bit images. All required image processing functions, including exposure control and defective pixel cancelling are programmable through the serial camera control bus (SCCB) interface.

MIPI and D-PHY specification (contains one clock lane and one data lane) with a maximum of 400 Mbps data transfer rate

Low operating voltage and low power consumption for embedded portable applications

High sensitivity and low dark current for low-light conditions

Supports global analog gain

Supports free-running clock and gated clock

Supports down sample mode and VarioPixel®

Auto black level calibration

Defect correction capability

  • Spec
    OVM9724-RADA
  • Package Dimensions
    3900 x 2890 x 2340 µm
  • Analog / Digital
    Digital
  • CFA (Chroma)
    RGB Bayer
  • Image Area
    1840 x 1040 µm
  • Resolution
    720p
  • Package
    Black Coating
  • Optical Format
    1/9"
  • Pixel Size
    1.4 µm
  • Frame Rate
    Full @ 30 fps
  • Power Requirement
    Active: 55 mA, Standby: 60 µA, XSHUTDOWN: 20 µA
  • Operating Temperature
    -30°C to +70°C
  • Output Format
    RAW
  • Shutter Type
    Rolling Shutter
  • Interface
    MIPI
  • Technology
    OmniBSI™+
