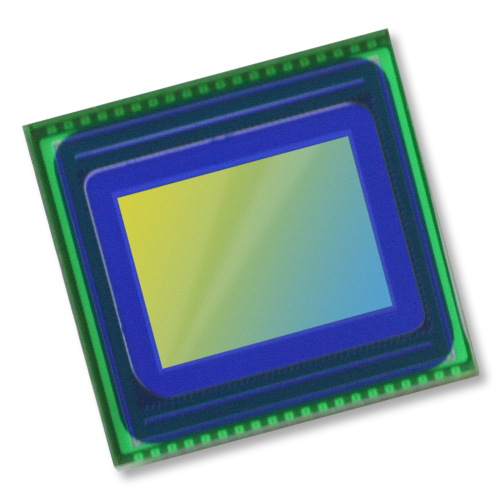

OV9760

1/5" Color 1.6‑Megapixel (1484 x 1116) CMOS Image Sensor With OmniBSI™‑2 Technology

End-of-Life

Not available

The OV9760 is a high performance CameraChip™ sensor that offers 960p high definition (HD) video to secondary cameras in high-end mobile devices. The sensor leverages OMNIVISION’s powerful 1.75-micron OmniBSI™-2 pixel architecture to deliver 960p HD video at 30 frames per second (fps) or high quality 720p HD at 30 fps with additional pixels for electronic image stabilization (EIS).

The sensor is optimized for video conferencing applications, utilizing a 2×2 binning functionality that doubles the sensitivity in VGA resolution, while scaling reduces spatial artifacts and removes image artifacts around edges to produce crisp, clean color video.

The OV9760 supports a digital video parallel port or MIPI interface, and provides full-frame, sub-sampled or windowed 10-bit images in RAW RGB format with complete user control over formatting and output data transfer.

All required image processing functions, including exposure control, white balance, and defective pixel canceling are programmable through the SCCB interface. The OV9760 fits into a compact 4.3 x 4.1 mm package.

Features
Tech Specs

Automatic black level calibration (ABLC)

Programmable controls for:
– Frame rate
– Mirror and flip
– Cropping
– Windowing

Image quality controls:
– Lens correction
– Defective pixel canceling

Supports output formats: 10-bit RAW RGB (MIPI/DVP)

Supports horizontal and vertical subsampling

Supports images sizes:
– 1484 x 1116
– 736 x 552
– 368 x 276

Fast mode switching

Support 2×2 binning

Standard serial SCCB interface

One-lane MIPI serial output interface/DVP output

Embedded 4K bits one-time programmable (OTP) memory for part identification, etc

Two on-chip phase lock loop (PLL)

Programmable I/O drive capability

Built-in 1.2V regulator for core

Built-in temperature sensor

Support alternate frame HDR
