High Performance OV9755 Brings Best-in-Class Low-Light Sensitivity to Mainstream Security Cameras

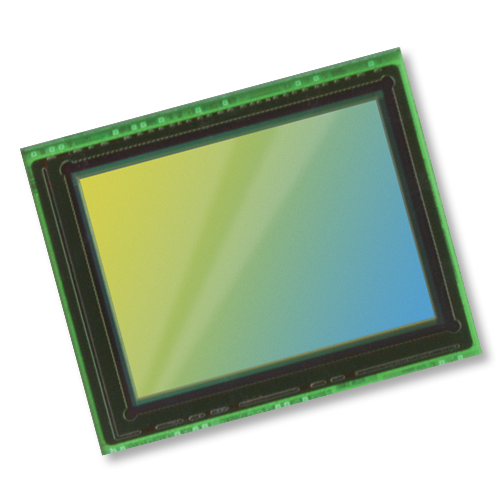

OMNIVISION’s OV9755 is a high performance CameraChip™ CMOS image sensor that brings best-in-class low-light sensitivity to mainstream security, smart home, and IP camera applications. The low-power OV9755 utilizes a large 3.75‑micron pixel to capture high definition (HD) and VGA resolution images and video, even in challenging, low-light conditions.

Built on proven OmniPixel®3‑HS technology, the 1/3‑inch OV9755 supports a “system wake-up trigger” and low-power mode, supporting camera operations while consuming minimal power (approximately 100 mW). The OV9755’s large 3.75‑micron pixel is designed to capture crisp and clear 720p HD video recording at 60 frames per second (fps), or VGA resolution video at 90 fps, in a wide range of lighting environments.

Features
Tech Specs

3.75 µm x 3.75 µm pixel

1280 x 720 at 60 fps @ 10-bit, 45 fps @ 12-bit

Programmable controls for:
– Frame rate
– Mirror and flip
– Cropping
– Windowing

Supports image sizes:
– 720p (1280×720)
– VGA (640×480), and more

Ultra low power mode (ULPM)

Support for output formats:
– 10/12-bit RGB RAW

Two-wire serial bus control (SCCB)

MIPI serial output interface (1-lane)/DVP interface

Image quality control:
– Defect pixel correction
– Automatic black level calibration

Spec

OV9755
