End-of-LifeNot available

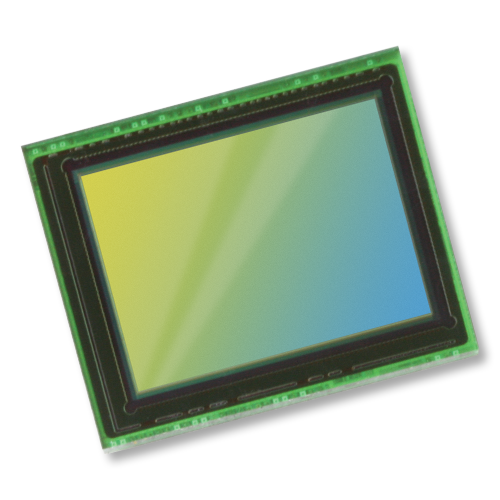

OMNIVISION’s OV9752 CameraChip™ captures high quality (HD) images and video in 1280 x 960 pixel resolution as well as infrared information, providing excellent scene reproduction regardless of lighting conditions. These benefits make the OV9752 an ideal camera solution for security systems designed to record during day and night.
The OV9752 replaces the traditional mechanical rotary filter with an RGB-Ir dual band color filter to simplify design, reduce package footprint, and capture extremely high quality infrared images and video.
Built on the 3.75-micron OmniPixel®3-HS pixel architecture, the OV9752 delivers excellent results whether recording visible light or infrared, capturing clear images and video in high, low, and “no” light environments. The sensors can capture in 1280 x 960 pixel resolution video at 60 frames per second (fps) with 10-bit output, or at 45 fps with 12-bit output. Additionally, the OV9752 features an ultra-low power mode, which allows the sensor to reduce the resolution and frame rates, thus further reducing power consumption.
The OV9752 fits into a 6.3 x 5.2 mm package.
RGB-Ir color filter
3.75 µm x 3.75 µm pixel
1280 x 960 at 60 fps @ 10-bit, 45 fps @ 12-bit
Programmable controls for:
– Frame rate
– Mirror and flip
– Cropping
– Windowing
Supports images sizes:
– SXGA (1280×960)
– VGA (640×480)
– and more
2k bits of embedded one-time programmable (OTP) memory
Ultra low power mode (ULPM)
Support for output formats:
– 10/12-bit RGB-Ir RAW
Two-wire serial bus control (SCCB)
MIPI serial output interface (1- or 2-lane) / DVP interface
2x binning support
Image quality control:
– Defect pixel correction
– Automatic black level calibration
-
SpecOV9752
