5‑Megapixel PureCel® CMOS Image Sensor Brings Improved Image Quality to Rear- and Front-Facing Cameras in Mobile Devices

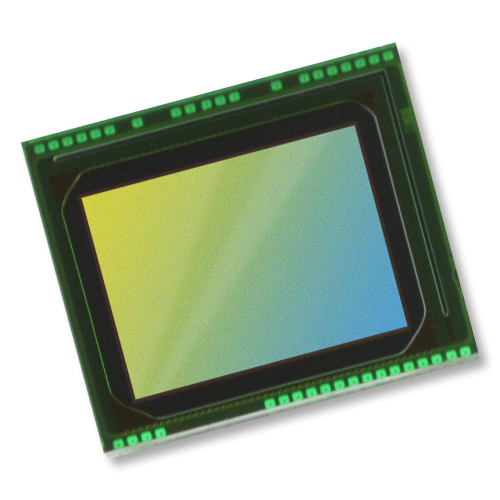

The OV5670 is a 5‑megapixel PureCel® CMOS image sensor that leverages a 1.12‑micron pixel to deliver exceptional still images and high-definition (HD) video to front‑ and rear‑facing cameras in smartphones and tablets.
The OV5670 PureCel® image sensor can capture full resolution 5‑megapixel (2592 x 1944) images at 30 frames per second (fps), quad HD video at 30 fps, cropped 1080p HD at 60 fps, or 720p HD at 60 fps. When recording 720p HD video with binning, the sensor achieves sensitivity and signal-to-noise ratio that is comparable to the industry’s popular 1.75‑micron pixel. Additionally, the sensor’s 1.12‑micron pixel achieves similar full-well capacity (FWC) as the previous generation’s 1.4‑micron pixel.
When recording full resolution video, the OV5670 uses approximately 35 percent less power compared to OMNIVISION’s previous generation 5‑megapixel sensor. The sensor’s ultra low power mode further reduces power consumption, thus minimizing battery drain.
The OV5670 fits into a compact 6 x 6 x 3.5 mm camera module, and is available in a cost-effective chip scale package (CSP).
1.12 µm x 1.12 µm pixel
5MP at 30 fps
Programmable controls for:
– Frame rate
– Mirror and flip
– Cropping
– Windowing
Supports images sizes:
– 5MP (2592×1944)
– Quad HD (2560×1440)
– 1080p (1920×1080)
– 720p (1280×720)
– VGA (640×480), and more.
2k bits of embedded one-time programmable (OTP) memory for customer use
Ultra low power mode (ULPM)
Support for output formats:
– 10-bit RGB RAW
Interleave row HDR output
Two-wire serial bus control (SCCB)
MIPI serial output interface (1- or 2-lane)
2x binning support
Image quality control:
– Defect pixel correction
– Automatic black level calibration
-
SpecOV5670
