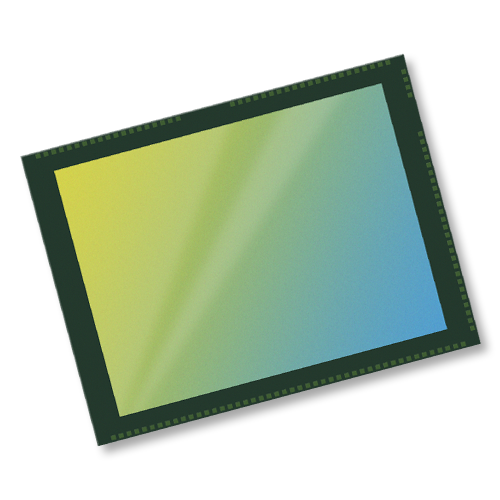

1/2.4" Color 21.4‑Megapixel (5344 x 4016) CMOS Image Sensor with PureCel®‑S Technology
  • SKU
    OV21840-G05A-Z
  • Category
    Image Sensor - Above 13MP
  • Application
    Mobile - Image Sensors

The PureCel®-S OV21840 is part of OMNIVISION’s family of high performance 21-megapixel image sensors designed to bring DSC-like images and video to the next generation of flagship smartphones. The OV21840 captures stunning ultra-high resolution images and video while enabling next-generation digital imaging features.

The sensor utilizes OMNIVISION’s new stacked die technology which separates the imaging array from the image sensor processing pipeline into a stacked die structure. This enables additional sensor functionality, such as phase detection autofocus (PDAF), two-dimensional contrast fast autofocus and high dynamic range (HDR) video, while maintaining a much smaller footprint.

The 1/2.4-inch OV21840 supports an active array of 5344 x 4016 pixels (21.4-megapixels) operating at 27 frames per second (fps), enabling ultra-high definition burst photography.

The sensor is capable of recording quad high definition (QHD) video at 30 fps in HDR mode to enable ‘always on’ HDR preview mode. Lastly, the sensor supports 720p high definition (HD) video at 120 fps, and 1080p HD video at 90 fps for crisp, slow motion video recording.

The OV21840 fits into a 10.5 x 10.5 mm module with a z-height of 6 mm.

Automatic black level calibration (ABLC)

Programmable controls for:
– Frame rate
– Mirror and flip
– Cropping
– Windowing

Support for dynamic DPC cancellation

Supports output formats:
– 14/12/10-bit HDR RAW
– 10-bit RAW RGB

Supports horizontal and vertical subsampling

Supports typical images sizes:
– 5344×4016
– 5344×3006
– 1080p
– 720p

Supports 2×2 binning, 4×4 binning, re-sampling filter

Standard serial SCCB interface

Up to 4-lane MIPI TX interface with speed up to 2 Gbps/lane

Programmable I/O drive capability

Up to 2×4-lane MIPI TX interface with speed up to 1 Gbps/lane

Up to 1/2/4/8-lane LVDS interface with speed up to 1 Gbps/lane

Embedded 6144 bytes total one-time programmable (OTP) memory for part identification, etc. 3K bytes reserved for customer use

Quarter size 4-exposure HDR output

Interleave row HDR output

Support for high speed AF

Support for PDAF

Three on-chip phase lock loops (PLLs)

Programmable I/O drive capability

Built-in temperature sensor
