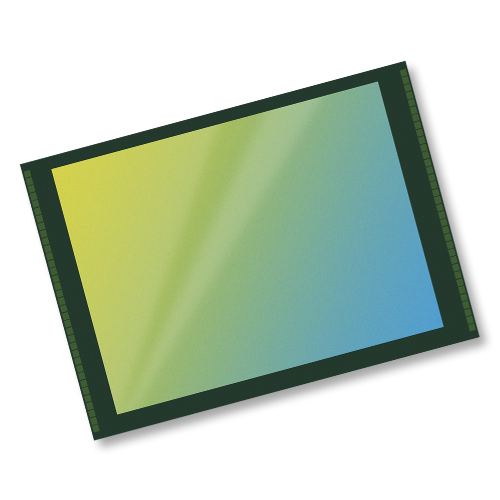

OMNIVISION’s OV20880-4C is an ultra-compact image sensor engineered to bring 20 megapixel resolution to produce “super selfies” for high-end mobile applications using OMNIVISION’s second-generation, 1.0-micron PureCel®Plus-S pixel technology. The OV20880-4C’s on-chip pixel binning feature allows four times more light photons than a regular 1.0-micron pixel, enabling high-sensitivity and clear images in all lighting environments. The OV20880-4C pairs with OMNIVISION’s complete software solution for resolution recovery and high-resolution, 20 megapixel selfies combined with a 4-cell mode.
The OV20880-4C offers a full 20 megapixel 4-cell RAW output mode and a 5 megapixel Bayer output mode that uses in-pixel binning to achieve 2.0-micron pixel performance. The OV20880-4C captures full-resolution 20 megapixel images and video at 30 frames per second (fps) and 1080p full high definition (HD) video at 120 fps. The OV20880-4C offers both MIPI D-PHY and C-PHY interfaces.
The OV20880-4C can fit in a package size of 8.5 x 8.5 mm with a z-height of 5.0 mm.
Automatic black level calibration (ABLC)
Programmable controls for:
– Frame rate
– Mirror and flip
– Cropping
– Windowing
Support for dynamic DPC
Supports output formats:
– 10-bit RAW RGB
– DPCM 10-8 compression
Supports horizontal and vertical subsampling
Output modes:
– 5 megapixel resolution, 2592 x 1944, output Bayer pattern after quadra binned, 120 fps
– 20 megapixel resolution, 5184 x 3888, 4-cell color filter, 30 fps
Two on-chip phase lock loops (PLLs)
Standard serial SCCB interface with speed up to 1 MHz (when clock input is >10 MHz)
Up to 4-lane MIPI TX interface with speed up to 1.92 Gbps/lane
Programmable I/O drive capability
Embedded 20 kbits of one-time programmable (OTP) memory with 12 kbits reserved for customer use
Gyro interface with 4-wire SPI and EIS support
Long exposure time of up to 30 seconds
Built-in temperature sensor
Typical module size: 8.5 x 8.5 x 5 mm
-
