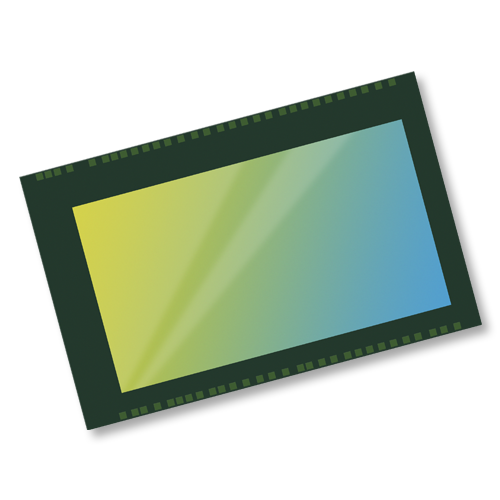

1/2.9" Color 2‑Megapixel (1920 x 1080) CMOS Image Sensor
  • SKU
    OV02G10-A41A-001A
  • Package
    CSP

1/2.9" Color 2‑Megapixel CMOS Image Sensor for Smart Home / IoT Consumer Cameras

The OV02G10 is a high quality, 1/2.9‑inch 1080p CMOS image sensor providing high-definition (HD) video and high quality digital imaging for smart home / IoT consumer camera applications.

By introducing an advanced 2.8 μm pixel architecture, the OV02G10 achieves excellent low-light sensitivity, signal-to-noise ratio, full-well capacity, quantum efficiency and low-power consumption. The default mode and programmable mode allow for a more convenient way of controlling the parameters of frame size, exposure time, gain value, etc. It also offers the following image control functions: mirror and flip, windowing, auto black level calibration, defective pixel correction, black sun cancellation, and other functions.

The OV02G10 supports a high frame rate of up to 30 fps @ 1080p format through the DVP interface or MIPI interface. These prominent features integrated in the OV02G10 allow for a best-in-class image sensor that will bring users vivid pictures and an excellent experience.

Programmable controls:
– Frame rate
– Mirror and flip
– Cropping
– Windowing

Supports 2×2 color binning function

Supports output formats: 10‑bit RAW RGB

SCCB control interface for register programming

Supports MIPI 2-lane serial output interface

Supports DVP 10-bit output interface

Supports image sizes: 1920 x 1080 @ 30 fps

Supports automatic black level calibration

Supports multi-camera synchronous function

  • Spec
    OV02G10
  • Analog / Digital
    Digital
  • Category
    2MP to 5MP
  • CFA (Chroma)
    Color
  • Frame Rate
    Full @ 30 fps
  • Image Area
    5398.4 x 3046.4 µm
  • Interface
    DVP, MIPI
  • Optical Format
    1/2.9"
  • Output Format
    10-bit RGB RAW
  • Package
    CSP
  • Pixel Size
    2.8 µm
  • Power Requirement
    Active: 115 mW, Standby: 10 µA
  • Resolution
    2MP
  • Shutter Type
    Rolling Shutter
  • Use Case
    IoT Devices, Smart Home Monitoring - Indoor security camera, Smart Home Monitoring - Indoor webcam, Smart Home Monitoring - Smart doorbell
  • Operating Temperature
    -30°C to +85°C
