12MP CMOS Image Sensor with PureCel®Plus and Nyxel® Technologies for 4K Doorbell Security Cameras

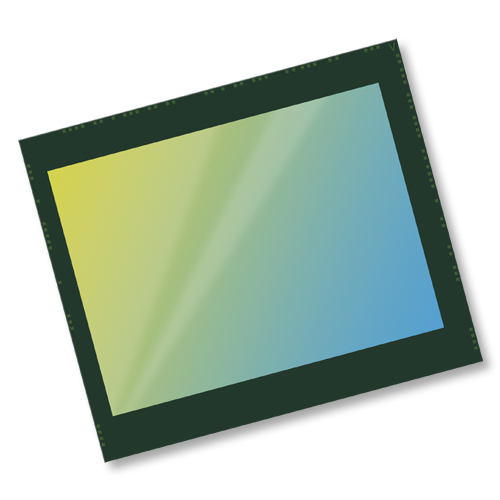

The OS12A10 RAW RGB image sensor is a high performance, 1/1.566‑inch, 12‑megapixel, CMOS image sensor that delivers 4096 x 3024 at 40 frames per second (fps) 10‑bit. It provides full-frame, sub-sampled, and windowed 10‑bit/12‑bit MIPI images in various formats via the control of the serial camera control bus (SCCB) interface.

The OS12A10 has an image array capable of operating at up to 40 fps in 10‑bit 12‑megapixel resolution with complete user control over image quality, formatting and output data transfer. Some image processing functions, such as defective pixel canceling, are programmable through the SCCB interface.

In addition, OMNIVISION CMOS image sensors use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise, smearing, etc., to produce a clean, fully stable, color image. The OS12A10 supports a DCG™ on‑chip combined, high dynamic RAW output creating no motion artifacts.

The OS12A10 supports an ultra low power always-on (AO)/pre roll, SPI/AO-link interface using ~2 mW 5 fps @ 960 x 540.

The OS12A10 has a MIPI interface of up to four lanes.
