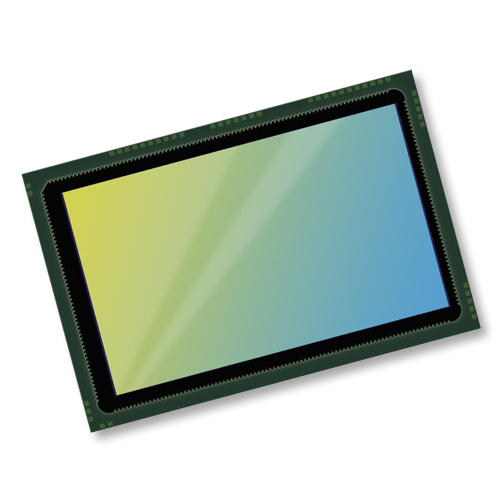

1/2.4" Color 6‑Megapixel (3200 x 1944) CMOS Image Sensor with PureCel®Plus and Nyxel® Technologies
  • SKU
    OS06A10-A45A-001A
  • Package
    CSP

1/2.4" Color 6‑Megapixel CMOS Image Sensor with PureCel®Plus and Nyxel® Technologies

The OS06A10 RAW RGB PureCel®Plus image sensor is a high performance, 1/2.4‑inch, 6‑megapixel CMOS image sensor that delivers 3200 x 1944 at 60 frames per second (fps) 10‑bit. It provides full-frame, sub-sampled, and windowed 10‑bit/12‑bit MIPI images in various formats via the control of the serial camera control bus (SCCB) interface.

The OS06A10 has a 6‑megapixel image array capable of operating at up to 60 fps in 10‑bit (or 30 fps in 12‑bit) resolution with complete user control over image quality, formatting, and output data transfer. Some image processing functions, such as defective pixel canceling, etc., are programmable through the SCCB interface.

In addition, OMNIVISION image sensors use proprietary sensor technology to improve image quality by reducing or eliminating common lighting / electrical sources of image contamination, such as fixed pattern noise, smearing, etc., to produce a clean, fully stable, color image.

The OS06A10 has a MIPI interface of up to four lanes.

Programmable controls for:
– Frame rate
– Mirror and flip
– Cropping
– Windowing

Supports output formats: 12‑bit/10‑bit RAW RGB

Supports images sizes:
– Full (3200 x 1944)
– 6MP (3200 x 1800)
– 5MP (2592 x 1944)
– 1080p (1920 x 1080)
– 720p (1280 x 720)
– VGA (640 x 480)

Supports 2×2 binning

Standard serial SCCB interface

Up to 4‑lane MIPI serial output interface (supports maximum speed up to 1500 Mbps/lane * 2‑lane, or 1200 Mbps/lane * 4‑lane)

Staggered HDR RAW data output

Programmable I/O drive capability

Built-in temperature sensor

MIPI serial output interface (1‑lane, 2‑lane, or 4‑lane)

Image quality controls:
– Defect pixel correction
– Automatic black level calibration

  • Spec
    OS06A10
  • Analog / Digital
    Digital
  • Category
    2MP to 5MP
  • CFA (Chroma)
    Color
  • Frame Rate
    Full @ 60 fps
  • Image Area
    6425.568 x 3916.08 μm
  • Interface
    MIPI
  • Optical Format
    1/2.4"
  • Output Format
    10-bit/12-bit RAW RGB
  • Package
    CSP
  • Pixel Size
    1.998 μm
  • Power Requirement
    Active: 216.5 mW (typical), XSHUTDOWN: <5 µA
  • Resolution
    6MP
  • Shutter Type
    Rolling Shutter
  • Technology
    Nyxel®, PureCel®Plus
  • Use Case
    Commercial / Industrial Security Cameras - Fixed box camera, Commercial / Industrial Security Cameras - Fixed bullet camera, Commercial / Industrial Security Cameras - Fixed dome camera, Commercial / Industrial Security Cameras - Modular camera, Commercial / Industrial Security Cameras - Panorama camera, Commercial / Industrial Security Cameras - PTZ camera, Smart Home Monitoring - Indoor security camera, Smart Home Monitoring - Indoor webcam, Smart Home Monitoring - Smart doorbell
  • Operating Temperature
    -30°C to +85°C
