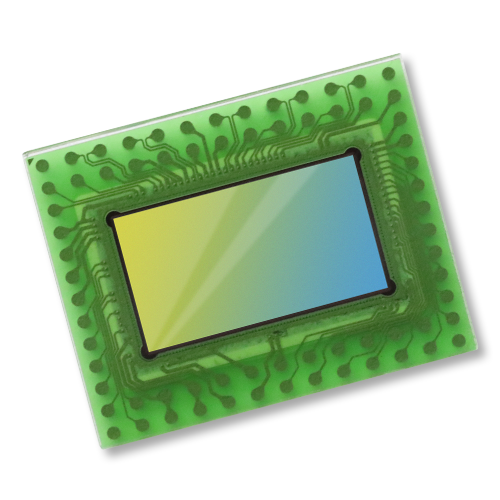

Color CMOS 1080p (1920x1080) HDR Image Sensor with PureCel®Plus-S and Nyxel® Technologies
  • SKU
    OS02C10-J70A-Z
  • Category
    Image Sensor - 2MP to 5MP

OMNIVISION’s OS02C10 is a 2.9-micron, 2-megapixel image sensor with breakthrough ultra-low-light (ULL) technology. Combining ULL with OMNIVISION’s industry-leading Nyxel® near-infrared (NIR) technology, the OS02C10 works equally well in all lighting conditions. It can detect incident light in both visible and NIR wavelengths and produce precise color and monochrome images for security applications such as remote surveillance cameras with AI for accurate facial recognition.

Nyxel® NIR technology infuses the OS02C10 with exceptional quantum efficiency (QE) of 60% at 850 nm and 40% at 940 nm, which is 2x to 4x better than competing devices. This enables the use of lower-power IR illumination in total darkness, resulting in an estimated 3x reduction in system-level power consumption. Additionally, 940 nm NIR lighting cannot be detected by the human eye in dark indoor settings, while 850 nm light is ideal for outdoor security cameras. The OS02C10’s ability to capture crisp, clear images using undetectable 940 nm NIR light means that indoor security cameras will not disturb sleeping occupants, and can be easily concealed from intruders.

The amount of NIR light that a sensor requires to capture high-quality images can be quantified with a new metric called NIR SNR1, which takes into account the QE, pixel size and read noise. The OC02C10 achieves an SNR1850nm of 23nW/cm² and an SNR1940nm of 31nW/cm², which means designers can reduce IR illumination to consume 2x to 4x less power compared to the competitors’ sensors, for the same environment and over the same image-detection range.

The OC02C10 has a superior low-noise design, achieving an SNR1 of 0.16 lux while producing high definition 1080p images. OMNIVISION’s proprietary dual-conversion-gain technology allows this sensor to achieve the industry’s best ULL performance, while the 3-frame staggered shutter minimizes motion artifacts and enables a high dynamic range (HDR) of 120 dB. Additionally, these technologies are easily upgradable to 2K and 4K resolution as security systems begin their transition to higher-quality displays.

QE enhancement in NIR range

Support for image size:
– 1920 x 1080
– VGA
– QVGA, and any cropped size

High dynamic range

High sensitivity

Programmable conversion gain

Image sensor processor functions:
– Defective pixel cancelation
– Automatic black level correction, etc.

Pixel data: 12b RAW RGB

SCCB for register programming

Programmable GPIOs

High speed serial data transfer with MIPI CSI-2 or LVDS

External frame synchronization capability

Embedded temperature sensor

One time programmable (OTP) memory

  • Spec
    OS02C10-J70A-Z
  • Analog / Digital
    Digital
  • CFA (Chroma)
    RGB Bayer
  • Image Area
    5614.4 x 3178.4 µm
  • Resolution
    1080p
  • Package
    Fan-out
  • Optical Format
    1/2.8"
  • Pixel Size
    2.9 µm
  • Frame Rate
    30x3 fps @ 1080p in 12-bit, 40x3 fps @ 1080p in 10-bit
  • Operating Temperature
    -30°C to +85°C
  • Output Format
    RAW
  • Shutter Type
    Rolling Shutter
  • Interface
    MIPI / LVDS
  • Technology
    HDR, Nyxel®, PureCel®Plus-S
