12-Megapixel BSI Global Shutter Sensor for Factory Automation and Intelligent Transportation Systems

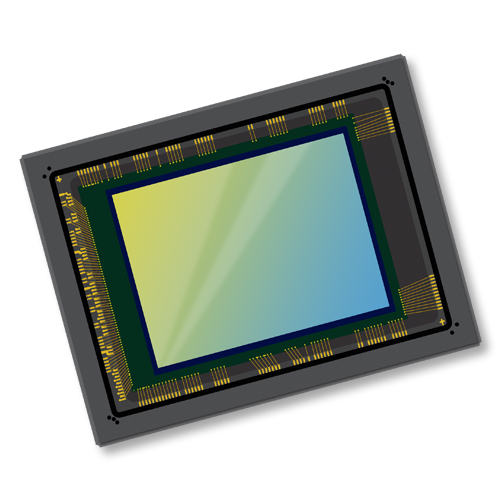

The OG12S 12‑megapixel (MP) backside illuminated (BSI) global shutter (GS) CMOS image sensor for factory automation and intelligent transportation systems (ITS) features a large 3.45‑micron (µm) pixel, providing exceptional sensitivity and high quantum efficiency (QE). It supports an ultra-short exposure time of 1 microsecond (µs) for extreme accuracy control in high-speed motion scenarios.

The OG12S PureCel®Plus‑S pixel GS sensor has on‑chip dual conversion gain (DCG™) high dynamic range (HDR) and features a 4096 x 3072 resolution. Nyxel® near-infrared (NIR) technology enables clear image capture with high pixel sensitivity and no motion artifacts. The imaging performance of the 12MP GS sensor is further enhanced by its 12‑bit ADC (analog-to-digital conversion). With a maximum of 75 frames per second (fps), the sensor can easily capture fast-moving objects.

The OG12S is available for sampling in November 2026; it will be in mass production in Q4 2026.

October 5, 2026: OMNIVISION Launches New 12MP Global Shutter Sensor for Factory Automation and Intelligent Transportation Systems
