Smallest Reflowable Global Shutter Camera for Augmented Reality and Smart Glasses

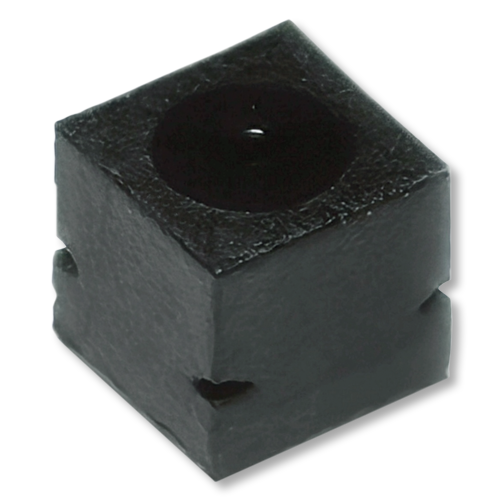

The OC0TC reflowable global shutter (GS) camera is designed for eye and face tracking in augmented reality (AR) consumer headsets and smart glasses. Based on OMNIVISION’s patented CameraCubeChip® technology, the OC0TC is a complete camera module that features a 2.2‑micron (µm) pixel OG0TC GS CMOS image sensor with patented DCG™ high dynamic range (HDR) technology.

With a z‑height of just 1.7 millimeters (mm) and a net weight of 6.71 milligrams (mg), the OC0TC is the world’s smallest and lightest GS camera for AR and smart glasses. It features 400 x 400 resolution and ultra-low power consumption at just 28 milliwatts (mW). A 940‑nanometer (nm) coating is applied to the camera lenses to suppress outdoor sunlight and improve user comfort for all-day usability.
