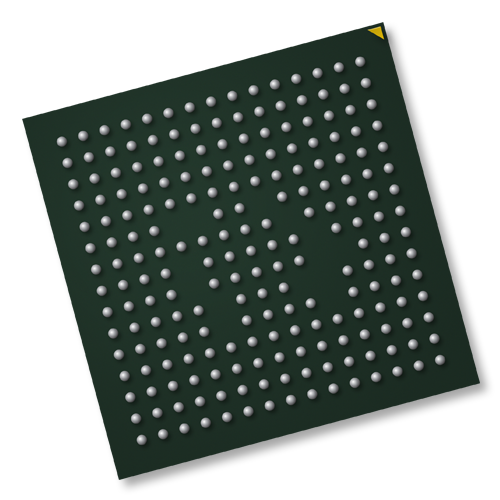

OA7000 Mainstream, Ultra Low Power & Cost Effective Video Processor for Security and Surveillance Applications
Camera Video Processor
  • SKU
    OA7000
  • Category
    ASIC - Sensor Bridge GROUP, ASIC - IoT Processor GROUP

Mainstream, Ultra Low Power & Cost Effective Video Processor for Security and Surveillance Applications

OMNIVISION’s OA7000 video processor, building on the success of its predecessor, the OV798, provides a more cost effective solution for battery powered intrusion cameras and video doorbells. It includes industry leading technologies for low power consumption and fast boot-up. When paired with OMNIVISION’s unique and sophisticated RGB-Ir sensors, it eliminates the need for a mechanical IR cut filter, which further optimizes the camera size and enhances system reliability.

Additional improvements include a triple-core ARM® Cortex® A5 CPU with NEON® support. This high-performance processor enables more advanced video analytics algorithms to be done on-chip, which reduces false alarms and increases battery life. Thanks to the powerful processor and integrated audio CODEC, high quality audio with noise reduction and echo cancellation is now available without extra cost.

A newly redesigned and more power efficient high dynamic range (HDR) ISP with RGB-Ir support is available on the OA7000. Combining the benefits of RGB-Ir and HDR, it shows every detail of the most challenging scenes with widely contrasting dark and bright areas, which are commonly found in video doorbell footage.

As cybersecurity becomes increasingly important, the OA7000 provides security features for secured boot up and live streaming.

Arm® and Cortex® are the registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere. NEON™ is the trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere.

Video encoder:
– High-profile advanced video encoder
– JPEG encoder for still pictures

Image signal processor features:
– Gen2 RGB-Ir sensor support
– HDR support (staggered mode) with RGB-Ir
– Built-in 3D noise reduction
– Max still picture capture: 2MP at 48 fps

Special features:
– Extremely low power consumption
– Fast bootup
– Secure boot
– Smart video analytics for longer battery life
– Dewarping and rotation
– Built in audio CODEC for audio record/play and echo/noise cancellation

Camera interfaces:
– MIPI one 2-lanes, two 1-lane receiver
– Supports up to 4MP image sensor
– SCCB master to access image sensor

Image signal processor:
– RGB-Ir processing
– HDR processing
– 10-bit RAW to YUV processing
– Adjustable AEC/AGC, AWB and autofocus
– Color correction/adjustment, gamma correction and contrast adjustment
– 16×16 zone lens shading correction and online color shading correction
– Lens distortion and perspective correction
– Defective pixel correction
– Mirror, flip and rotation
– Supports up to 4X digital zoom
– 3D/2D de-noise filter

Video engine:
– Supports single-stream video recording with a maximum resolution of up to 1080p at 48 fps (1920 x 1080)
– Supports dual-video-stream recording with one 1080p at 30 fps (1920 x 1080) stream and one 720p at 30 fps (1280 x 720) stream
– Supports triple-video-stream recording with three 720p at 30 fps (1280 x 720) streams
– Rate control to support various and constant bit rates

Video processing:
– Cropping and scaling
– Dewarping and rotation

Video analytics:
– Built-in advanced motion-detection engine

Still picture:
– Supports still picture capture of up to 2 megapixels at 48 fps
– Supports still picture compression

Storage interfaces:
– One storage I/O peripheral interface, that can be used for an external Wi-Fi module
– One storage card interface
– NAND flash interface for 8-bit and 16-bit, with up to 8-bit BCH ECC
– Supports serial-interface NAND devices, with or without ECC engine

USB:
– USB2.0 HS/FS device controller

Audio CODEC and audio engine:
– Built-in 20-bit sigma delta ADC and 20-bit mono DAC, with full-duplex audio, AGC and echo/noise cancellation
– Embedded audio engine for audio recording and playback
– Full-duplex audio serial interface (up to 2 channels)
– Supports various audio formats

Security engine:
– Supports AES/DES/3DES encryption and decryption
– Supports secure boot

Embedded triple-core ARM® Cortex® A5 CPU with NEON® and FPU
– 16KB I-cache, 16KB D-cache for Core 0 and Core 1
– 32KB I-cache, 32KB D-cache for Core 2

DDR-SDRAM controller:
– LPDDR2/DDR3 16-bits wide

Miscellaneous:
– UART, timers, watchdog timer, general-purpose I/O, JTAG

Power supply:
– Core: 1.1V
– Analog: 3.3V
– DDR I/O: 1.2V (LPDDR2) / 1.35V (DDR3L) / 1.5V (DDR3)
– I/O: 1.8V/3.3V
– PLL: 1.8V

Temperature range:
– Commercial grade operational temperature: -30°C to +85°C

  • Spec
    OA7000
  • Category
    IoT Processor, Sensor Bridge
  • Chroma
    RGB, RGB-Ir
  • Cores
    Triple ARM® Cortex® A5 with NEON®
  • Description
    1080p Video Processor
  • DRAM Stack
    1 Gb DDR3L
  • Encoder
    H.264, MJPEG
  • Input Interface
    MIPI
  • Key Features
    H.264 encode
  • Max Frame Rate
    60 fps
  • Operating System
    RTOS/Linux
  • Output Interface
    SDIO/SPI

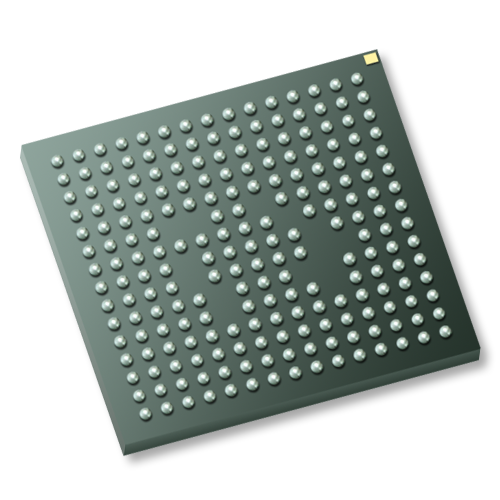

  • Package
    BGA
  • Package Size
    10 mm x 10 mm
  • Package Type
    BGA
  • Sensors Supported
    OV2732, OV2735, OV2736, SP2309, SP2329
  • Target Solutions
    Security & Surveillance
  • Use Case
    Smart Home Monitoring - Indoor security camera, Smart Home Monitoring - Indoor webcam, Smart Home Monitoring - Smart doorbell
