OMNIVISION Launches ‘Ready-to-Go’ Reference Designs for High Definition Video Single-Use Laryngoscopes
Apr 11, 2022

Announced prior to MD&M West, reference designs help to speed time-to-market for development of video laryngoscopes and improve patient care with crisp, clear images and a wider field of view

SANTA CLARA, Calif. — April 11, 2022 — OMNIVISION, a leading global developer of semiconductor solutions, including advanced digital imaging, analog and touch & display technology, today launched new laryngoscope reference designs that include a range of OMNIVISION products that help improve patient care by providing crisp, clear images for single-use video laryngoscopes. Visualization makes insertion of the endotracheal tube easier and faster and avoids failures in difficult airways, significantly reducing the chances of complications and even death.

OMNIVISION’s “ready-to-go” reference designs help medical device OEMs speed time-to-market in the development of laryngoscopes. They feature high quality images and a wider field of view (FoV), and include CameraCubeChip® CMOS image sensors, low power mechanical designs, optics, batteries, as well as capabilities for recording and playback.

“The video laryngoscope, a device used in the visualization of the airway, is quickly displacing traditional direct laryngoscopy,” said Ehsan Ayar, product marketing manager at OMNIVISION. “Producing the best images of the larynx requires smaller z-height and superb optics, which is enabled by our OmniBSI™ and OmniBSI™+ technologies. We have designed all of our premier imaging technologies into a ‘ready-to-go’ reference kit to help shorten development time for these important, high demand devices.”

Ayar adds, “Enhanced visualization helps to avoid endotracheal intubation failures in difficult airways that can lead to dental damage, laryngeal, dysrhythmia and cardiac spasm. Further, single-use devices eliminate cross-contamination that can result with reusable endoscopes.”

The global video laryngoscope market approached $219.7 million in 2019 and is set to hit $795.0 million by 2027, exhibiting a CAGR of 17.4%.1 Driving the fast adoption rate is the fact that video laryngoscopy results in more successful intubations in a shorter period of time than traditional direct laryngoscopy.

In addition, single-use blades with OMNIVISION cameras have been in high demand globally for treating COVID-19 patients. A high percentage of patients need to be intubated to go on a ventilator, and video laryngoscopy is used over direct laryngoscopy since it improves intubation success and maximizes operator distance.

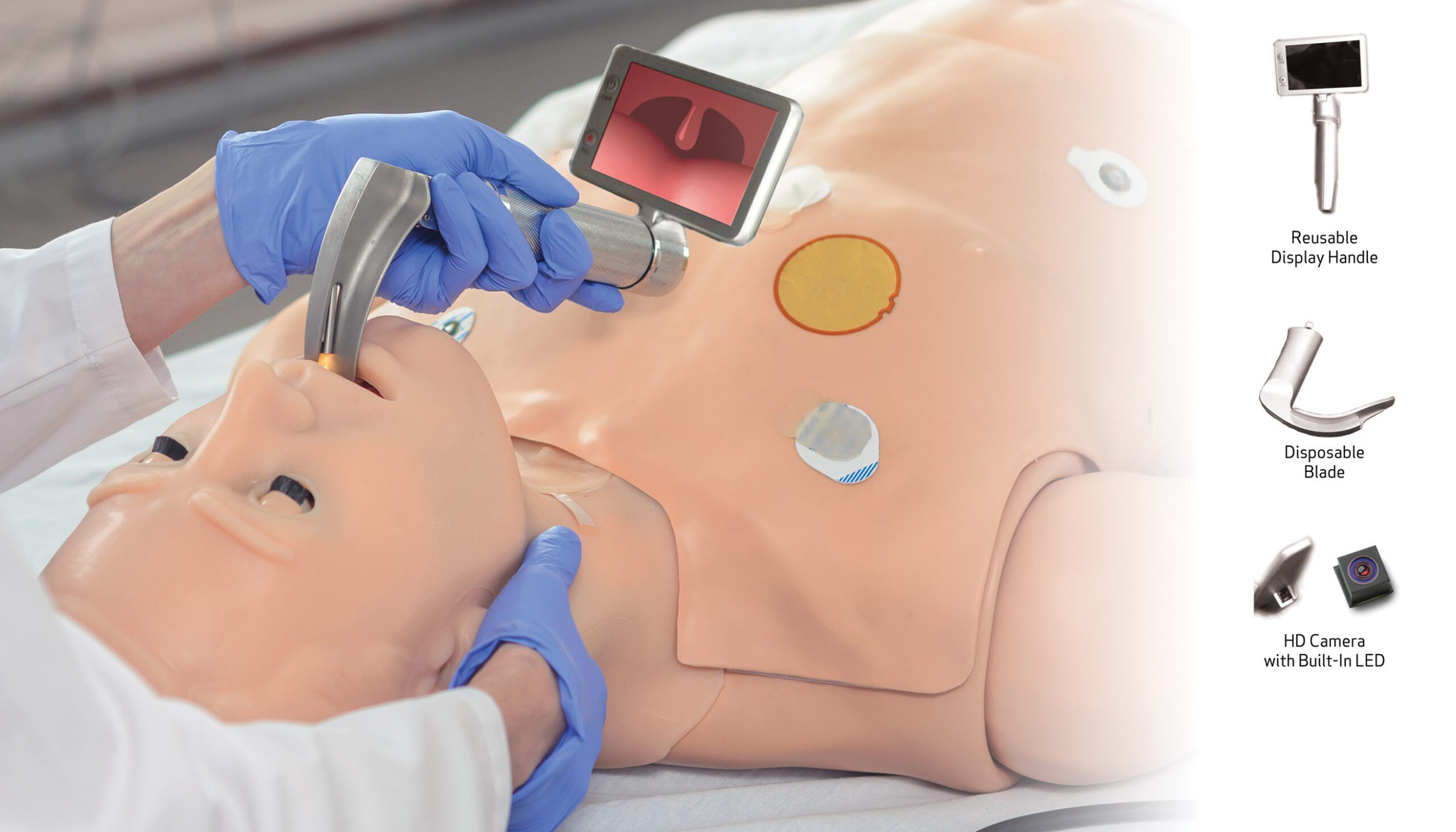

The complete reference design for video single-use laryngoscopes includes:

  • OVM9724-RADA-R1 — A small form factor, short-focus 720p CameraCubeChip® that features a 1.4 µm OmniBSI™ pixel with 62.8‑degree FoV and 32 mm – 88 mm depth of field, ideal for medical intubation/laryngoscopy.
  • OVM7695 — A small form factor 1/13-inch VGA system-on-chip CameraCubeChip® that uses a 1.75 µm OmniBSI™+ pixel and features a 61-degree FoV.
  • OV788 — A single-chip, high definition video/audio processor that features ultra-low power consumption, fast boot-up, small footprint and requires no external memory. It can provide high quality video encoding or decoding up to 720p at 30 frames per second and has an image signal processor for RAW sensor connection. Its multiple sensor interfaces (3 DVP + 1 MIPI) opens up a wide variety of applications. It also has dual RISC processors with data and instruction cache for customized algorithms.

The reference designs are available now. For more information, visit OMNIVISION at MD&M West, booth #1275, taking place April 12-14, 2022 at the Anaheim Convention Center, or contact your OMNIVISION sales representative: www.ovt.com/contact-sales.

1Fortune Business Insights Report FBI104559

About OMNIVISION

OMNIVISION is a global fabless semiconductor organization that develops advanced digital imaging, analog, and touch & display solutions for multiple applications and industries, including mobile phones; security and surveillance; automotive; computing; medical; and emerging applications. Its award-winning innovative technologies enable a smoother human/machine interface in many of today’s commercial devices. Find out more at www.ovt.com.
