Wafer-Level Module Offers World’s Most Compact 640k Resolution Camera for Disposable Endoscopes

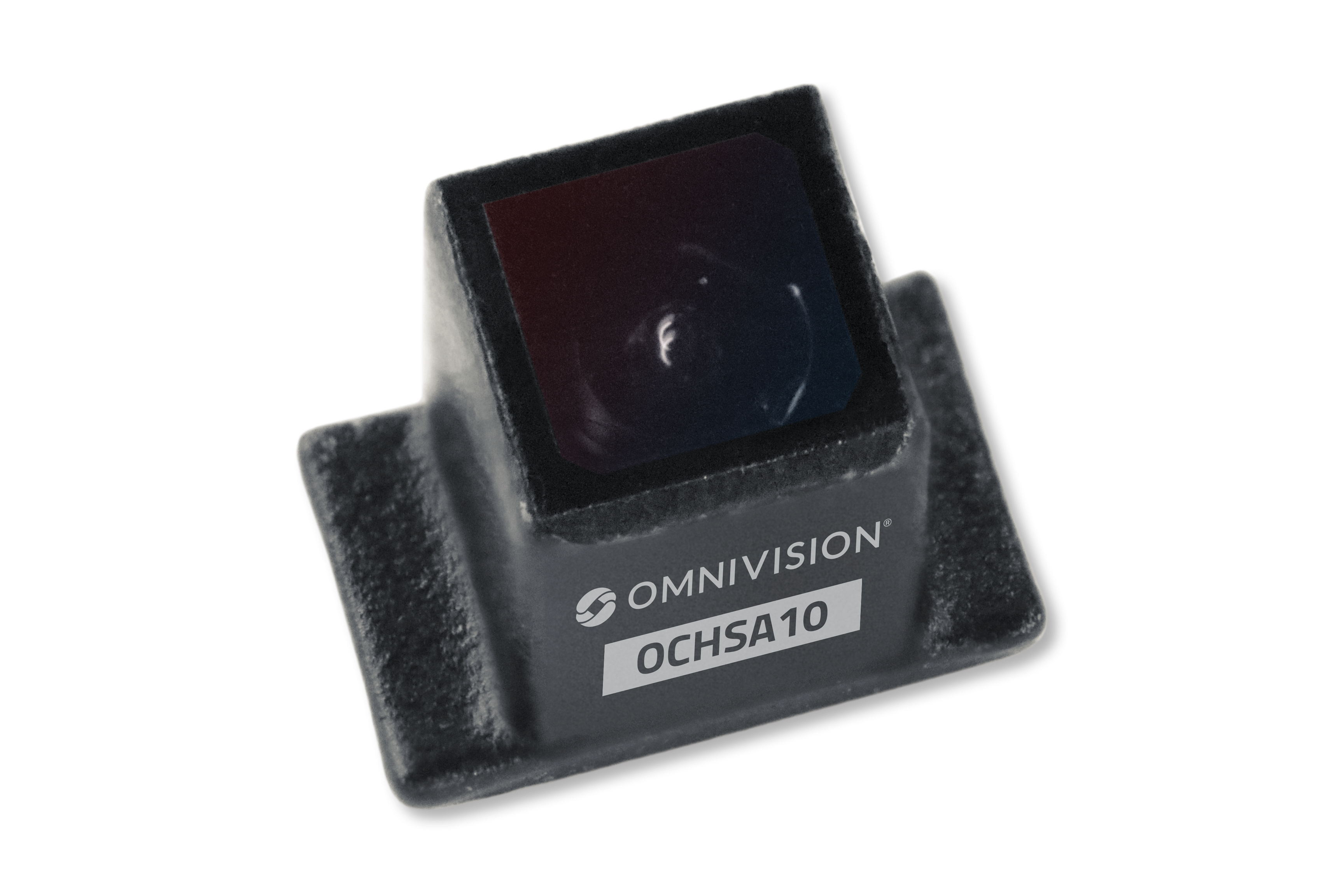

SANTA CLARA, Calif. — Nov. 20, 2019 — OMNIVISION Technologies, Inc., a leading developer of advanced digital imaging solutions, today announced the OCHSA—the latest member of its growing family of CameraCubeChip® wafer-level camera modules for medical applications. This new module offers an industry leading resolution of 800 x 800 with the highest frame rate of 60 fps, or 400 x 400 resolution at 90 fps, for blur-free images and video. Additionally, the OCHSA provides a compact size of 2.6 x 1.6 mm and excellent raw color imaging performance because it integrates an infrared (IR) cut filter, unlike some competing modules in this class. With 120-degree and 90-degree field of view options for diagnosis and therapeutic applications, respectively, this cost-effective module offers the best combination of resolution, size and viewing angle for disposable endoscopes, providing doctors, veterinarians and industrial applications with the very best image quality.
“Existing medical cameras are either too large, in the case of reusable cameras, or their disposable counterparts are lacking in resolution for medical procedures such as gastrointestinal, laparoscopy and airway management. Doctors and clinicians require smaller size and increased resolution during these procedures, for better diagnosis and greater surgical precision,” said Aaron Chiang, marketing director at OMNIVISION. “We are building on the success of our widely adopted CameraCubeChip® line of wafer-level camera modules by doubling the resolution while maintaining an extremely small form factor, which is essential for these disposable applications.”
An IR cut filter is integrated into the OCHSA, eliminating the chromatic effects from IR light that cause color fidelity loss. This precise color reproduction is crucial for accurately identifying abnormalities within the body.
The OCOSA also provides wide 120-degree and 90-degree field of view options, in order to provide doctors with the best possible endoscopic images. To enable use within the body, the OCHSA is the only camera module in its class that offers ETO and STERRAD sterilization capabilities, along with waterproofing and biocompatibility. Additionally, it has low power consumption of 82.2 mW to reduce heat at the distal tip of the endoscope for enhanced patient comfort. Furthermore, unlike traditional cameras, all CameraCubeChip® modules are reflowable. This means that they can be mounted to a printed circuit board simultaneously with other components, using automated surface-mount assembly equipment.
OMNIVISION’s PureCel®Plus-S stacked pixel technology imbues the OCHSA with high sensitivity, high full-well capacity, zero blooming, low noise, stabilized black level and low power consumption. This pixel architecture also includes a buried color filter array for better angular response, a higher chief ray angle and deep trench isolation for reduced crosstalk. These features provide improved image quality over competing architectures.
Signal quality is ensured by the 1-lane MIPI / sub-LVDS serial output. In-module horizontal and vertical subsampling capabilities allow doctors to zoom in on specific areas within the body, while the light-source syncing and strobe function enables better and more convenient control of image brightness. The OCHSA also integrates 2×2 binning support, which combines four pixels into one for higher sensitivity while achieving the fastest frame rate of 90 fps.
OCHSA samples are available now, along with an evaluation kit to further accelerate development. For more information, contact your OMNIVISION sales representative at www.ovt.com/contact-sales.
