SKUOV09623-N29A
-
CategoryImage Sensor - 1MP and Below
-
ApplicationSurveillance - Image Sensors

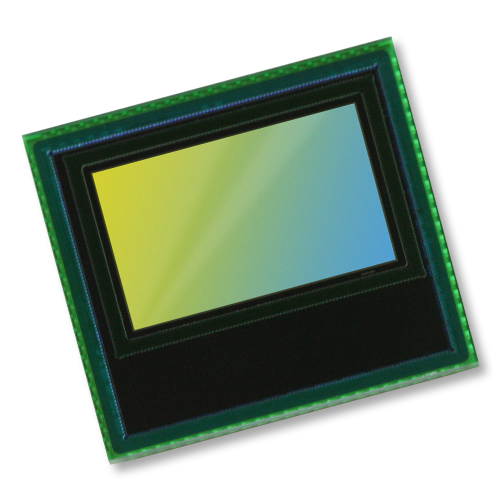

OMNIVISION’s OV9623 is a fully integrated, high sensitivity color CMOS system-on-chip (SOC) camera solution for advanced video imaging applications. The OV9623’s 1/2.7-inch optical format delivers full resolution high definition (HD) images and video at 30 frames per second (fps). The OV9623 also supports advanced features such as high dynamic range (HDR), auto exposure, auto white balance, color correction, HDR tone mapping, and defective pixel correction.
Built on a 4.2-micron OmniPixel®3-HS pixel, the 1 megapixel OV9623 enables best-in-class low-light sensitivity, delivering excellent scene reproduction even in demanding lighting conditions. The OV9623 offers complete user control of image quality, formatting, and output data transfer with image size options including WXGA (1280×800), 720p HD (1280×720), WVGA (752×480), and VGA (640×480).
Camera functions are programmable through a serial camera control bus (SCCB) interface, and additional features include a horizontal and vertical windowing capability, external frame sync capability, and 50/60 Hz flicker cancellation.
The OV9623 comes in a 7.795 mm x 7.145 mm chip scale package (CSP), and operates at commercial temperature grade from -30°C to +85°C.
Support for image sizes:
– WXGA (1280×800)
– HD 720p (1280×720)
– WVGA (752×480)
– VGA (640×480)
– 600×400
– CIF (352×288)
– QVGA (320×240)
Support for output formats:
– YUV
– Separated and combined RAW
Parallel DVP interface
High sensitivity
Automatic exposure/gain
Horizontal and vertical windowing capability
Auto white balance control
Aperture/gamma correction
Serial camera control bus (SCCB) for register programming
Low power consumption
External frame sync capability
50/60 Hz flicker cancellation
Defective pixel correction
-
SpecOV09623-N29A
-
Analog / DigitalDigital
-
Category1MP and Below
-
CFA (Chroma)RGB Bayer
-
Frame RateFull @ 30 fps
-
Image Area5510.4 x 3418.8 µm
-
InterfaceDVP
-
Optical Format1/2.7"
-
Output FormatRAW, YUV
-
PackageCSP
-
Pixel Size4.2 µm
-
Power Requirement1.5V DVDD, Active: 507 mW typical @ 3.3V AVDD, and 1.8V DOVDD, Standby: 440 µW typical @ 3.3V AVDD
-
Resolution1MP
-
Shutter TypeRolling Shutter
-
TechnologyHDR, OmniPixel®3‑HS
