SKUWL2863C
-
CategoryPower Management - LDO
-
ApplicationMobile Devices, IoT/Emerging
The WL2863C is a linear regulator capable of supplying 250-mA output current. Designed to meet the requirements of RF and analog circuits, the WL2863C device provides low noise, high PSRR, low quiescent current and very good load /line transients.
The device is designed to work with a 1 μF input and 1 μF output ceramic capacitor (no separate noise Operation bypass capacitor is required).

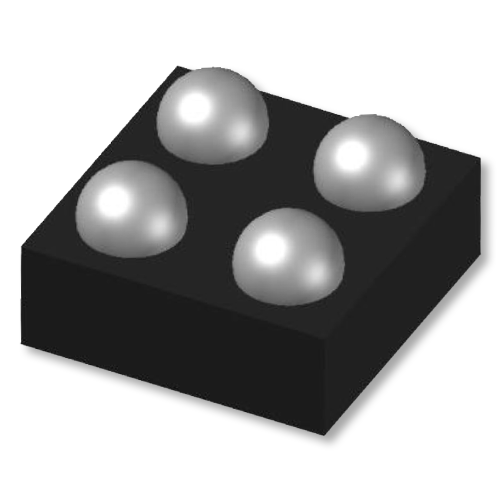

The WL2863C regulators are available in standard CSP-4L Package. Standard products are Pb-free and Halogen-free.
Applications
– Cellphones, radiophones, digital cameras
– Bluetooth, wireless handsets
– HiFi products
– Other portable electronic devices
Input Voltage Range:
2.2V~5.5V
Output Voltage Range:
1.2V~4.3V
Output current:
250 mA
PSRR:
Typ. 100 dB at 10 mA, f = 1 KHz
Typ. 45 dB at 10 mA, f = 1 MHz
Low Dropout:
Typ. 115 mV at 250 mA
Quiescent current:
Typ. 22 μA
Low Output Voltage Noise:
Typ. 6 μVRMS
Output Voltage Tolerance:
±2%
Shutdown Current:
Typ. 0.01 μA
UVLO Threshold(V):
Typ. 2.05V
Recommend capacitor:
1 µF
Stable with 1 μF Ceramic Input and Output capacitor
No Noise Bypass Capacitor Required
Thermal-Overload Protection
-
SpecWL2863C
-
PackageCSP‑4L
-
RDISCHARGE FUNCTIONYes
-
Size0.63×0.63
-
SubfamilyLDO, Linear regulator
-
VOUT (V) (Min.)Fix
-
CategoryLDO
-
Iq(uA)22
-
Output current 1(mA)250
-
PSRR(dB)100
-
Use CaseEmerging, Mobile
-
Vdrop(mV)100 mV @ Iout = 250 mA
-
Vin Max(V)5.5
-
Vin Min(V)2.2
-
Vout(V)Fix
