Low Noise, High PSRR, High Speed, CMOS LDO
  • SKU
    WL2848E

The WL2848E series are high accuracy, low noise, high speed, high PSRR, low dropout CMOS Linear regulators with high ripple rejection. The devices offer a new level of cost effective performance in cellular phones, laptops, notebook computers, and other portable devices.

The WL2848E series support the soft-start which prevents input inrush current. The series also have the fold-back maximum output current which depends on the output voltage. The current limit function serves both as a short circuit protection and as an output current limiter.

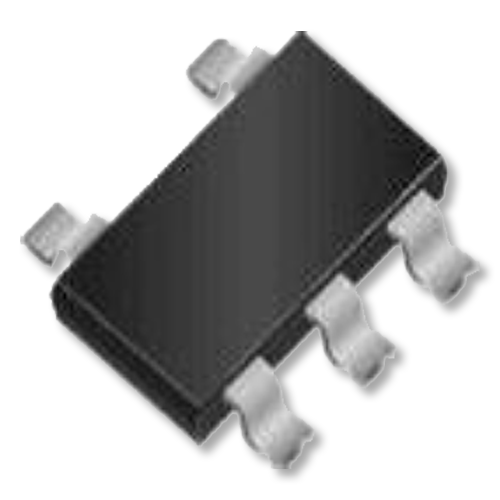

The WL2848E regulators are available in a standard SOT‑23‑5L package. Standard products are Pb-free and Halogen-free.

Applications
– MP3 and MP4 players
– Cellphones, radiophones, digital cameras
– Bluetooth, wireless handsets
– Other portable electronic devices

Input voltage range:
1.9V~5.5V

Output voltage range:
1.2V~3.3V

Output current:
300 mA

Quiescent current:
typical 58 μA

Shut-down current:
<1 μA

Dropout voltage:
168 mV at IOUT = 0.3A

PSRR:
74 dB at 1 kHz, VOUT = 2.8V

Low output voltage noise:
15×VOUT μVRMS

VOUT accuracy:
±1.5% at VOUT >2.0V

Recommend output capacitor:
1 μF

Thermal overload and short-circuit protection

  • Spec
    WL2848E
  • Package
    SOT‑23‑5L
  • RDISCHARGE FUNCTION
    Yes
  • Size
    2.92×1.6
  • Subfamily
    LDO, Linear regulator
  • Category
    LDO
  • Description
    High Accuracy, High PSRR, High speed, Low Dropout CMOS Linear Regulator, Low noise
  • Iq(uA)
    58
  • Output current 1(mA)
    300
  • PSRR(dB)
    74
  • Use Case
    Emerging, Mobile
  • Vdrop(mV)
    149 mV @ 300 mA
  • Vin Max(V)
    5.5
  • Vin Min(V)
    1.9
  • Vout(V)
    Fix
