CMOS VGA (640x480) CamerCubeChip® with OmniBSI™+ Technology
  • SKU
  • Category
    CameraCubeChip - VGA GROUP
  • Application
    Mobile - Image Sensors

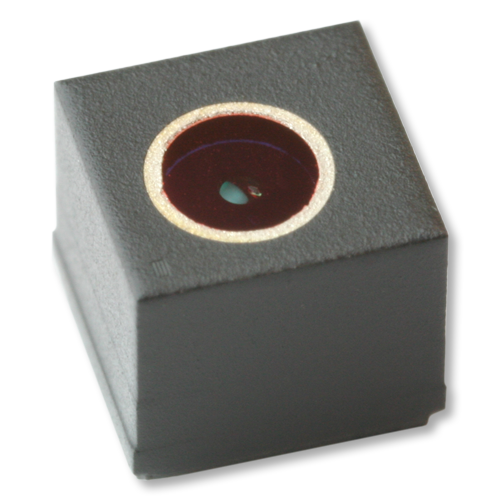

The OVM7695 is an ultra compact VGA CameraCubeChip®® designed specifically to meet the performance and manufacturing requirements of front-facing camera applications for next-generation mobile devices. The only VGA camera using backside illumination (BSI) pixel technology, the reflowable OVM7695 is a high-performance, all-in-one complete camera solution with a module size of 2.4 x 2.4 x 2.3 mm.

The OVM7695 offers an easy-to-use front-facing camera solution that requires minimal assembly and tuning effort. This dramatically simplifies design, integration and manufacturing of mobile phone cameras, thus reducing inventory risk and lowering development costs.

The 1/13-inch OVM7695 is built on an optimized 1.75-micron OmniBSI™+ pixel, offering improved sensitivity and image reproduction to deliver optimal performance in difficult lighting conditions. The OVM7695 captures high-quality VGA video at 30 frames per second and provides full-frame, sub-sampled and cropped images in various formats through the Serial Camera Control Bus (SCCB) interface.

It supports all required image processing functions, including exposure control, gamma, white balance, color saturation and noise and defective pixel canceling. It uses OMNIVISION’s proprietary sensor technology to improve image quality by reducing or eliminating common lighting and electrical sources of image contamination to produce a clean, fully stable color image.

Support image sizes:
– VGA (640×480)
– QVGA (320×240)
– QQVGA (160×120)
– HF (640×20)

Support output formats:
– YUV422 and RAW 8 RGB through MIPI
– YUV422 and RAW 10 RGB through OmniVision’s proprietary SPI

On-chip phase lock loop (PLL)

Built-in 1.5V regulator for digital block

Capable of maintaining register values at software power down

Programmable controls for:
– Frame rate
– Mirror and flip
– Windowing

Support horizontal and vertical sub-sampling

Automatic image control functions:
– Automatic exposure control (AEC)
– Automatic white balance (AWB)
– Automatic black level calibration (ABLC)

Image quality controls:
– Defect pixel correction
– Lens shading correction

Support black sun cancellation

Standard serial SCCB interface

I/O tri-state configurability and programmable polarity

  • Spec
  • Package Dimensions
    2420 x 2350 x 2325 µm
  • Analog / Digital
  • CFA (Chroma)
    RGB Bayer
  • Image Area
    1148 x 868 µm
  • Resolution
  • Package
    Black Coating
  • Optical Format
  • Pixel Size
    1.75 µm
  • Frame Rate
    Full @ 30 fps
  • Power Requirement
    IDD-A: 15 mA, IDD-IO: 20 mA, XSHUTDOWN: 5 µA
  • Operating Temperature
    -30°C to +70°C
  • Output Format
    RAW, YUV
  • Shutter Type
    Rolling Shutter
  • Interface
  • Technology
