Overview

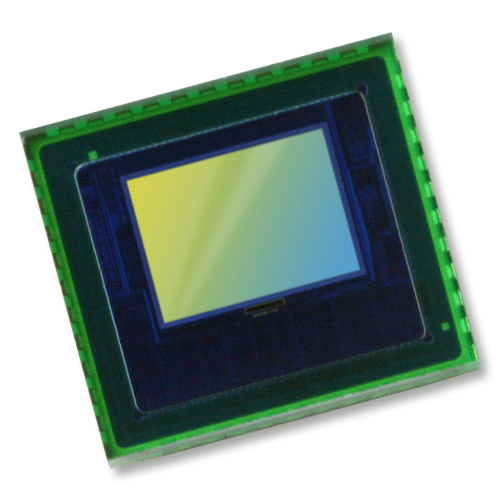

The ultra-thin (3 mm) high-performance OV7739 video sensor provides the ideal image solution for a variety of applications including mobile, notebook PCs, netbooks, and gaming applications. In addition to its small footprint and high-performance features, the OV7739 is capable of producing various output formats over a parallel DVP or serial MIPI port, providing a versatile platform for use in single and multi-camera applications.

Developed specifically to address the low-light sensitivity demands of the fast-growing mobile market, the OV7739 delivers best-in-class low light performance at 3300 mV/lux-sec, enabling high quality video conferencing and recording in virtually any lighting condition.

Based on OmniPixel3-HS™ architecture, the 1/7.5-inch OV7739 is capable of operating at 30 frames per second (fps) in VGA resolution and 60 fps in QVGA resolution with complete user control over image quality, formatting and output data transfer. The OV7739 provides full-frame, sub-sampled, windowed or scaled 8-bit/10-bit images in RAW RGB and YUV formats.

All required image processing functions, including exposure control, white balance, and defective pixel canceling, are programmable through the SCCB interface. The OV7739 eliminates image contamination issues such as fixed pattern noise, smearing and blooming to produce a clean, stable and vivid color image.

Features

Ultra-thin (3 mm) module z-height

Excellent low light performance 3300 mV/lux-sec

Support for multiple interfaces including parallel and MIPI serial output

Automatic image control functions:
- Automatic exposure control (AEC)
- Automatic gain control (AGC)
- Automatic white balance (AWB)
- Automatic band filter (ABF)
- Automatic 50/60 Hz luminance detection
- Automatic black level calibration (ABLC)

Programmable controls for:
- Frame rate
- Mirror and flip
- Scaling
- Cropping
- Windowing

Image quality controls:
- Color saturation
- Hue
- Gamma
- Sharpness (edge enhancement)
- Lens correction
- Defective pixel canceling
- Noise canceling

Support for output formats:
- 8-/10-bit RAW RGB
- CCIR656
- YUV422

Support for horizontal and vertical sub-sampling

Support for images sizes:
- VGA
- Any arbitrary size scaling down from VGA

Support for binning

Support for external frame synchronization

Standard serial SCCB interface

Embedded one-time programmable (OTP) memory for part identification, etc.

On-chip phase lock loop (PLL)

Programmable I/O drive capability

Built-in 1.5V regulator for core

Part Specification
SpecOV07739-G04AOV07739-A34A
PackageCOBCSP
TechnologyOmniPixel3-HS™OmniPixel3-HS™
InterfaceMIPI
DVP
MIPI
DVP
Shutter TypeRolling ShutterRolling Shutter
ResolutionVGAVGA
CFA (Chroma)RGB BayerRGB Bayer
Analog / DigitalDigitalDigital
Power RequirementActive: 61 mW
Standby: 56 µW
TBD
Output FormatYUV
RAW
YUV
RAW
Operating Temperature-30°C to +70°CTBD
Optical Format1/7.5"1/7.5"
Frame RateFull @ 30 fpsFull @ 30 fps
Pixel Size3.0 µm3.0 µm
Image Area2016 x 1488 µm2016 x 1488 µm
Package Dimensions4000 x 3400 µm3985 x 3385 µm
Product GuidePDFPDF
