Overview

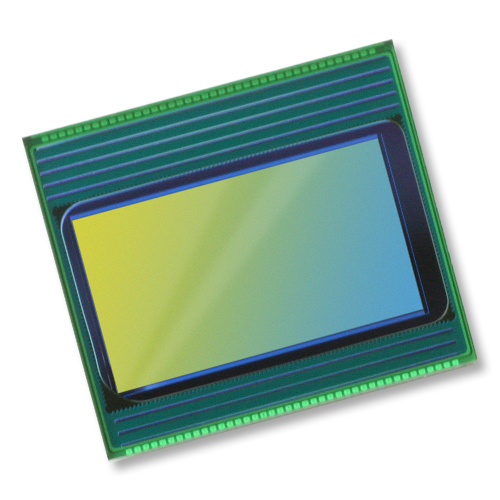

The OV4685 is a high performance 4-megapixel CameraChip™ sensor in a native high definition (HD) 16:9 format designed for next-generation surveillance and security systems. The sensor is built on a 2-micron OmniBSI-2™ pixel that provides best-in-class sensitivity, and uses advanced OmniHDR-F™ technology to provide industry leading staggered high dynamic range (HDR).

The 1/3-inch OV4685 can capture full-resolution 4-megapixel HD video at 90 frames per second (fps), 1080p HD at 120 fps, and binned 720p HD at 180 fps. The sensor's high frame rates enable crisp, clean image and video capture of fast moving objects.

The OV4685's advanced OmniHDR-F technology provides staggered HDR timing, increasing dynamic range to 64.6 dB while recording high-quality images and video under extreme variations of bright and dark conditions.

The sensor features a high-speed 4-lane MIPI serial output interface to facilitate the required high data transfer rate. The OV4685 is available in a chip scale package (CSP).

Features

Automatic black level calibration (ABLC)

Programmable controls for:
- Frame rate
- Mirror and flip
- Cropping
- Windowing

Static defective pixel canceling

Supports output formats:
- 10-bit RAW RGB (MIPI)

Supports horizontal and vertical subsampling

Supports images sizes:
- 4MP
- 3MP
- EIS1080p
- 1080p
- EIS720p

Fast mode switching

Support 2x2 binning, 4x4 binning, re-sampling filter

Standard serial SCCB interface

Up to 4-lane MIPI serial output interface

Embedded 4K bits one-time programmable (OTP) memory for part identification, etc.

Two on-chip phase lock loops (PLLs)

Programmable I/O drive capability

Built-in temperature sensor

Supports staggered, sequential and alternative row HDR timing

Supports staggered 3 exposure HDR mode

Part Specification
SpecOV04685-H67A
PackageCSP
TechnologyOmniBSI-2™
HDR
InterfaceMIPI
Shutter TypeRolling Shutter
Resolution4MP
CFA (Chroma)RGB Bayer
Analog / DigitalDigital
Power RequirementActive: 163 mA (261 mW)
Standby: 1 mA
XSHUTDOWN: <10 µA
Output FormatRAW
Operating Temperature-30°C to +85°C
Optical Format1/3"
Frame RateFull @ 90 fps
Pixel Size2.0 µm
Image Area5440 x 3072 µm
Package Dimensions6630 x 5830 µm
